SmartAVI UXGA/Audio Point to Point CAT5 Extender (Receiver Unit Only)


Save $43.94
FREE Shipping on orders over $100

The SmartAVI VCA-RX100S is the receiver (requires transmitter sold separately) for the VCA-100S and VCA-400S Video Extender systems, which use a single CAT5 cable to broadcast high resolution UXGA and stereo audio up to 1000ft away.

SmartAVI VCA Extender System Features:

  • Uses easy to install, inexpensive CAT5
  • Output reaches up to 1,000 feet
  • Supports high resolution clear video up to 1900x1200
  • 300 MHz Bandwidth
  • Sends high-resolution VGA signals and stereo audio up to 1000 feet
  • Compatible with VGA, XGA, Sun, MAC and SGI Signals
  • Sync Format / Polarity Preservation
  • High ground loop immunity
  • Built-in lightning, power surge and transient protection
  • Remote Units come with Buffered Outputs
  • Designated trimmer in the remote unit to compensate for cable length
  • Metal Case Enclosure
  • External power supply

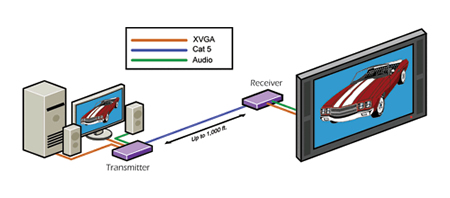

SmartAVI VCA100 Video Extender Application Diagram
SmartAVI VCA100 Video Extender Application Diagram

Applications for the VCA400 include:

  • Presentations:
    Enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
  • Data Broadcasting:
    Data such as news, stock prices, sports results, and flight information can be broadcasted in real time to various monitors.
  • Learning and Training:
    Can be used in educational presentations to multiple locations, in schools and in other training facilities.

Package Includes:

  • 1 x VCA-RX100 (Receiver Unit)
  • 1 x PS5VD1A (Power Supply)

VCA-RX100 Specifications:

Requirements5V DC @500mA
Connector5 x 2.1mm DC jack
Analog signal level1Volt
Impedance75 ohms
ConnectorHigh density HD15
SyncTTL horizontal SyncRange: 15 to 130
KHzVertical Sync Range: 30 to 120 Hz
Signal level0dB
Impedance10K ohms
Connector3.5mm jack socket
System Cable
TypeCat5 UTP EIA 568A
