UXGA/YUV/YC, Mono Audio CAT5 Transmitter

VCA-TX100S

$125.00$97.40
Save $27.60
FREE Shipping on orders over $100
smartavi_madeinusa

Use a single CAT5 cable to extend high-resolution VGA video extender (supports WUXGA) and stereo audio 1,000 feet away, at the most affordable price on the market.
Transmitter Only.

Applications

  • Presentations - Enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
  • Data Broadcasting - Data such as news, stock prices, sports results, and flight information can be broadcasted in real time to various monitors.
  • Learning and Training - Can be used in educational presentations to multiple locations, in schools and in other training facilities.

Features

  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Output reaches up to 1,000 feet (300m).
  • Supports high resolution clear video up to 1920x1200.
  • HDTV compatible (720p, 1080i,1080p).
  • 300 MHz Bandwidth.
  • Sends high-resolution XVGA and Stereo Audio signals.
  • Compatible with VGA, XGA, Sun, MAC and SGI Signals.
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact metal case enclosure.
  • Optional power supply for remote unit.
  • Remote Units come with Buffered Outputs.

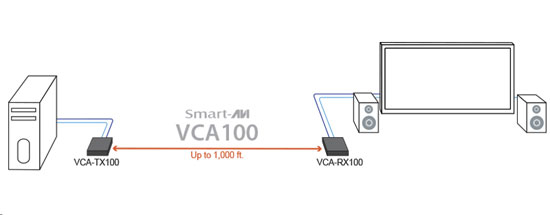

diagram

SmartAVI VCA-100 Transmitter Specifications

Power
Requirements5V DC @500mA
Connector5 x 2.1mm DC jack
Video
Bandwidth400MHz
Analog signal level1Volt
Impedance75 ohms
ConnectorHigh density HD15
FormatVGA/SVGA/XGA/UXGA/
RGBHV/RGsB
SyncTTL horizontal SyncRange: 15 to 130
KHzVertical Sync Range: 30 to 120 Hz
Audio
Bandwidth20KHz
Signal level0dB
Impedance10K ohms
Connector3.5mm jack socket
System Cable
TypeCat5 UTP EIA 568A
ConnectorRJ45
UPC / EAN Barcode icon
UPC 813280020282
EAN 0813280020282
