VGA/Audio Cat 5 Receiver Wall Plate (1280 x 1024@150m)


The VE156R VGA Over Cat 5 Receiver Wall Plate connects to a VE156T to extend VGA signals up to 150m from the source using Cat 5e cables. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.

The VE156R can be powered from the Transmitter via a second Cat 5e cable to transmit the power signal. The VE156's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for meeting rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Product Features

  • Remotely powered from the Transmitter **
  • Extends the distance between VGA source and VGA display
  • Superior video quality - up to 1920 x 1200@60Hz (30 m), 1280 x 1024@60Hz (150m)
  • Adjustable Gain Control - manually adjusts signal strength to compensate for distance
  • Supports wide screen formats
  • Supports hot-plugging
  • Decora type design is easily configurable to fit various wall plates
  • LED indication of power sources / connection status
  • Supports stereo audio
  • Built-in 8KV/15KV ESD protection
  • Easy installation
  • Wall mountable type for a neat and cleaner installation
  • Plug-and-play - no software installation required

Package Includes

  • 1x VE156R VGA Over Cat 5 Receiver Wall Plate
  • 1x Terminal Block Connector
  • 1x Power Adapter
  • 1x User Instructions

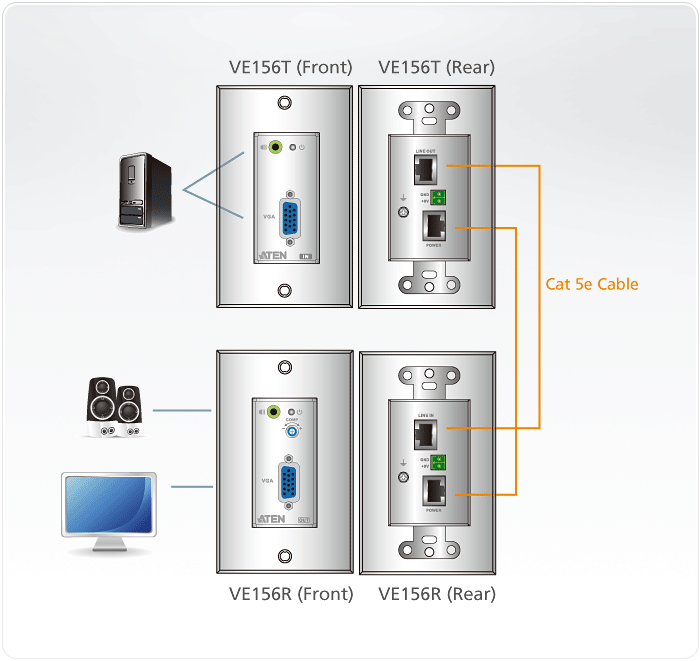

Product Use Diagram

Product Specifications

Video Input
Video Output
Interfaces1 x HDB-15 Female
Max Bandwidth300 MHz
Max Resolutions/DistanceUp to 1920 x 1200@30m; 1280 x 1024@150m
Input1 x Mini Stereo Jack Female
Connectors1 x Terminal Block
Consumption9V DC, 3.2W
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
Weight0.4 lb (0.18 kg)
Dimensions (L x W x H)4.1 x 1.75 x 1.68 in. (10.41 x 4.44 x 4.26 cm)
