VGA/Audio Cat 5 Extender w/ Auto Compensation

VE300

The VE300 A/V Over Cat 5 Extender is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch. The VE300 allows you to extend the distance between a source device and video display up to 150 m with a resolution of 1600 x 1200 (VE300R), or up to 300 m with a resolution of 1280x1024 (VE300RQ).

It is able to accomplish this by means of a local transmitting unit (the VE300T), connected to the remote receiving unit (either the VE300R or VE300RQ), using Cat 5e twisted pair cable. Because it allows access to the audio/video source over large distances, the VE300 is ideal for installations such as construction sites, factory floors, control and security centers, where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.

To provide optimum video quality over large distances, the VE300RQ supports RGB delay tuner functionality - allowing you to manually synchronize the RGB signals. It also provides a line synchronization function that corrects color phase and timing errors that occur over long distance transmissions, and stores the settings.

Product Features

  • Uses Cat 5e cable to connect the Transmitter and Receiver
  • Extends A/V source in VM0808T installations
  • Supports one local and one remote displays
  • Superior RGB deskew function (VE300RQ)- automatically synchronizes the time delay of RGB signals to compensate for distance
  • Long Distance Transmission up to 300 m
  • Superior video quality
    • VE300R: 1920x1200@60Hz (30 m), 1600x1200@60Hz (150 m ), 1280x1024@60Hz (200 m)
    • VE300RQ: 1920x1200@60Hz (150 m), 1280x1024@60Hz (300 m)
  • Automatic and adjustable gain control - adjust signal strength to compensate for distance
  • Supports wide screen
  • Rack-mountable
  • Built-in 8KV/15KV ESD protection

Package Includes

  • 1x VE300T
  • 1x VE300R
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions

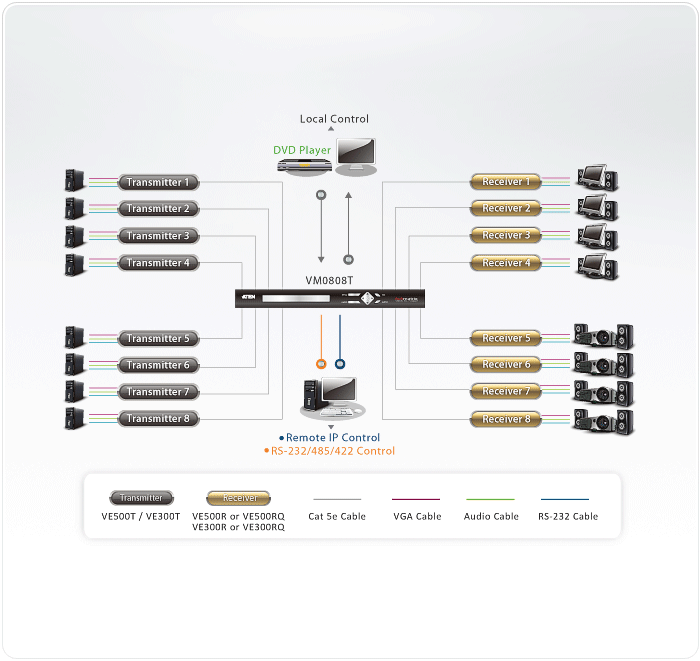

Product Use Diagram

Product Specifications

Video Input
Interfaces1 x HDB-15 Male
Impedance75Ω
Max Distance1.8 m
Video Output
Interfaces1 x HDB-15 Female
Impedance75Ω
Video
Max Bandwidth300 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Max Resolutions/DistanceVE300R: 1920 x 1200@30m; 1280 x 1024@200m
Audio
Input1 x Mini Stereo Jack Female
Output1 x Mini Stereo Jack Female
Power
Connectors1 x DC Jack
ConsumptionVE300T: 5.3V DC, 2.61W
VE300R: 5.3V DC, 4.00W
Environmental
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
HousingMetal
