DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)

VE601R

$128.00$100.36
Save $27.64
FREE Shipping on orders over $100

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

Product Features

  • HDBaseT Connectivity - extends a DVI connection up to 70 meters via a single Ethernet cable
  • HDBaseT Anti-Jamming - resists signal interference during video transmission using HDBaseT technology
  • Rack-Mountable

Package Includes

  • 1x VE601T/R DVI HDBaseT-Lite Extender
  • 2x Power Adapters
  • 1x User Instructions

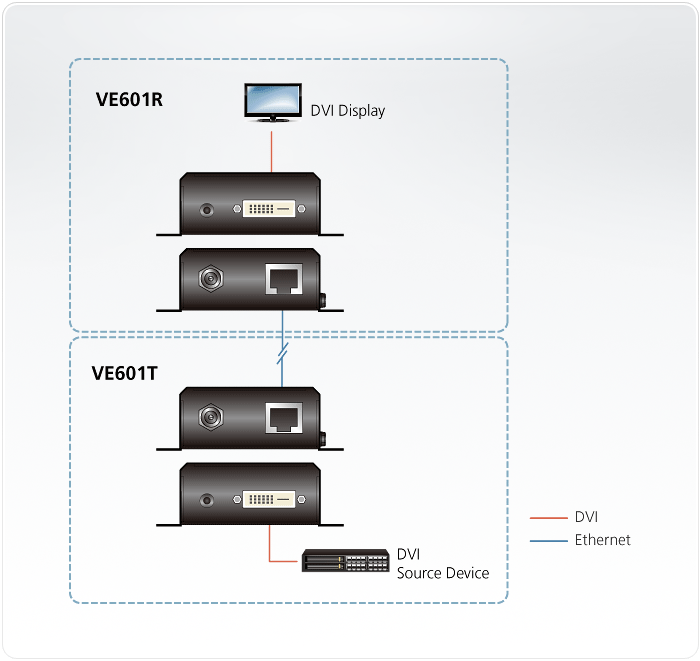

Product Use Diagram

Product Specifications

Video Input
InterfacesN/A
ImpedanceN/A
Max DistanceN/A
Video Output
Interfaces1 x DVI-D Female
Impedance100Ω
Video
Max Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max Pixel Clock340 MHz
ComplianceDVI (3D, Deep Color); HDCP compatible
Max Resolutions/DistanceUp to 1920 x 1200@35m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60m (Cat 5e/6) / 70 m (Cat 6a)
Power
Connectors1 x DC Jack with locking
Consumption5V DC, 4.23W
Environmental
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.55 lb (0.25 kg)
Dimensions (L x W x H)4.06 x 3.43 x 1.18 in. (10.30 x 8.70 x 3.00 cm)
UPC / EAN Barcode icon
UPC 672792006647
EAN 0672792006647
