100m 4K HDMI Active Optical Cable

VE875

$925.00$786.25
Save $138.75
FREE Shipping on orders over $100

The VE875 HDMI Active Optical Cable utilizes ATEN's unique AOC+ technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. This EMI-resistant optical cable comes in 100 m cable lengths with full support of 1080p resolutions that can withstand extreme conditions while improving speed and distance. It's fully compliant with HDMI standards and provides support for high-speed transmission, 3D and 4K x 2K resolutions. This cable is the ideal solution for extending the reach of your digital signage in various settings, such as in large shopping malls and hospital facilities.

Product Features

  • Converts electrical data signals to optical signals
  • HDMI (3D, 4kx2k,Deep Color); HDCP Compatible
  • Superior video quality - up to 4096 x 2160
  • RF/EMI free for clear signal transmission
  • Easy to install with optical fiber cable
  • Powered remote unit via USB Cable
  • High data transfer rates of 10.2 Gbps
  • Plug-and-play - no software required

Package Includes

  • 1x VE875 HDMI Active Optical Cable
  • 1x User Instructions

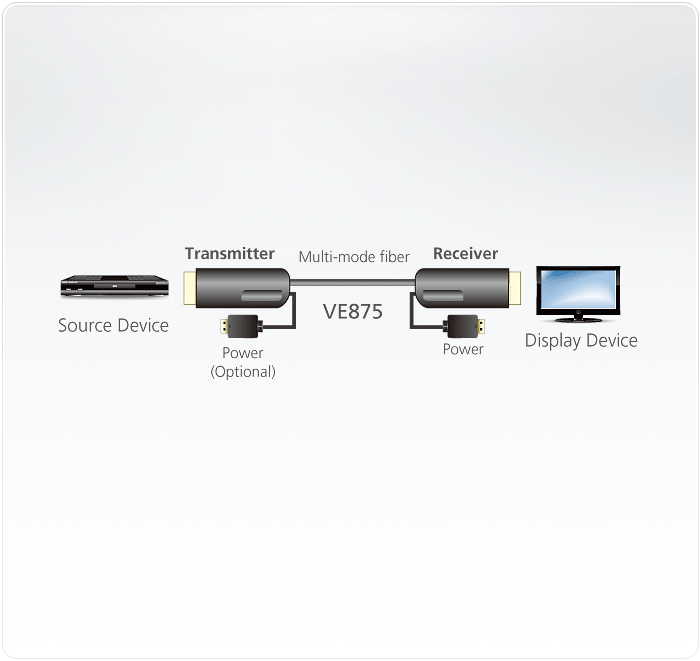

Product Use Diagram

Product Specifications

Video Input
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video Output
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video
Max Data Rate10.2 Gbps
Max Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC)
Max Resolutions/DistanceUp to 4K@50m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female
Output1 x HDMI Type A Female
Power
Connectors1 x DC Jack
Consumption5V DC, 1W
Environmental
Operating TemperatureVE801R: 32°-104°F (0°-40°C)
Storage TemperatureVE801R: -4°-140°F (-20°-60°C)
HumidityVE801R: 0-80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight
Dimensions (L x W x H)
UPC / EAN Barcode icon
UPC 672792006197
EAN 0672792006197
