VGA/Component Video to HDMI Converter
VGACMP-HD
Save $14.12
The VGA/Component Video to HDMI Converter converts component video or VGA signal, with stereo audio, to a single HDMI stream with integrated audio.
- Play audio and video from analog sources such as a PC or DVD player, on your digital HDMI-compliant HDTV.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
- Compliant with HDMI 1.2 standard.

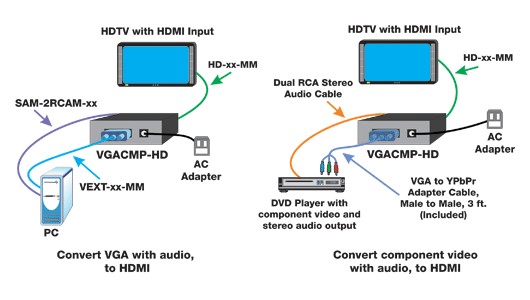

- Ideal for integrating analog home theater devices such as, legacy DVD players with component outputs, with digital HDMI-compliant displays.
| Video Input |
| One female 15-pin HD connector for VGA or Component Video (using adapter cable) |
| Signal Type: RGBHV, YPbPr |
| RGB Input: 0.7Vp-p, H & V sync: 3-5V p-p |
| Component Video Input: Y=1Vp-p, Pb, Pr=0.7Vp-p |
| Input Impedance: 75 Ohms. |
| Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p for HDTV displays. |
| Supports up to 1920x1200 resolution for monitors. |
| Video Output |
| One female HDMI Type A connector for HDMI video (and audio) output. |
| Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p for HDTV displays. |
| Supports up to 1920x1200 resolution for monitors. |
| Audio Input |
| Two RCA phono jacks (R&L). |
| Power |
| 100 to 240 VAC at 50 or 60 Hz via AC Adapter. |
| Power consumption: 3.6W. |
| Dimensions |
| WxDxH: 3x4.1x1.2 in (76x105x30 mm) |
| Weight: 0.42 lbs (190 g). |
| Environmental |
| Operating temperature: 32 to 104°F (0 to 40°C). |
| Storage temperature: -4 to 140°F (-20 to 60°C). |
| Operating and Storage Relative Humidity: 20 to 90% non-condensing RH. |
| Package Includes |
| VGA/Component Video to HDMI converter. |
| VGA to YPbPr adapter cable, male to male, 3ft. |
| AC power adapter. |
| User manual. |
| Regulatory Approvals |
| CE, FCC, UL, RoHS |
