The ATEN Control System, incorporating the VK2100 (ATEN Controller), the VK6000 (ATEN Configurator) and the ATEN Control System App is a standard Ethernet-based management system that connects all hardware devices in a room or large facility to provide centralized control of devices directly and effortlessly via an iPad. The VK2100 works as the main controller that provides great connectivity to all sorts of hardware devices commonly seen in a room. After connecting the hardware, the VK6000 software allows customizable device configuration via creation of a simple system project in 4 easy steps. By connecting to the VK2100 via Ethernet, the ATEN Control System App empowers you with the mobility to control different hardware devices in different rooms whenever and however you like.

Product Features

  • Supports various connecting interfaces, including:
    • 6 x Serial port;
    • 4 x IR/Serial port;
    • 4 x Relay channel;
    • 4 x I/O channel;
    • 1 x Ethernet port
  • 4 x DC output for power supply connections
  • 1 x USB port for easy profile upload
  • IR Learning function for adding IR device drivers
  • Easy system settings via the web GUI
  • LED indication for hardware status and active messages
  • SSH tool to monitor the input and output signals of the controller
  • Rack-mountable

Package Includes

  • 1x VK2100 ATEN Controller
  • 1x Rack Mount Kit
  • 4x Foot Pads
  • 1x CD (ATEN Studio)
  • 1x User Instructions

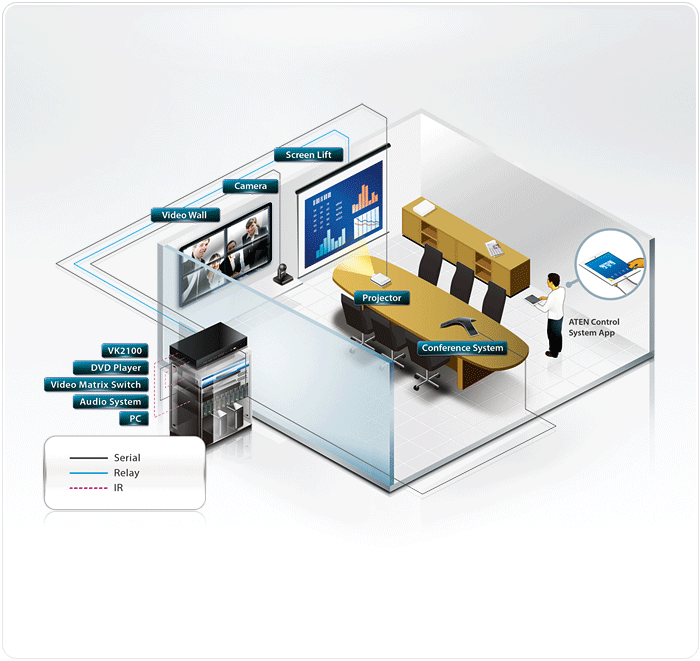

Product Use Diagram

Product Specifications

Serial4 x Programmable Bi-directional RS-232/422/485 Port
(4 x DB9 Male Connector, configurable via pin assignments);
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd;
- Flow Control: None (default) RTS/CTS
2 x Bi-directional RS-232 Port
(2 x 3-Pole Terminal Block Connector);
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), even or odd
IR/Serial4 x Programmable IR / Uni-directional RS-232 Port
(2 x 4-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
- Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 ( + - 5 V)
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd
I/O4 x Programmable Digital Input / Output Channel
(1 x 5-Pole Terminal Block Connector);
Digital Output:
250 mA sink from 12 VDC
Digital Input:
- VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
- Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
Relay4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
Normally open, isolated Relays;
Contact Rating: Max 24 VDC, 2A
VDC4 x 12 VDC Output Port (2 x 4-Pole Terminal Block Connector);
Power Supply: 12 VDC, 2A Max (shared by 4 ports)
Ethernet1 x RJ-45 Female, 10/100Base-T
Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
Subnet Mask:
Establishes VK2100 connection with the VK6000 (ATEN Configurator) and iPad (ATEN Control System App)
ControlController ID: 1 x 16-segment Switch
Power: 1 x On/Off Switch
IR Learning1 x IR Receiver LED
Reset Button1 x Semi-recessed Pushbutton
USB1 x USB Type A
PowerConsumption: 40 Watt
Maximum Input Power Rating: Internal Power: 100-240 VAC, 50-60 Hz
EnvironmentalOperating Temperature: 32°-122°F (0 - 50°C)
Storage Temperature: -4°-140° (-20 - 60°C)
Humidity: 0 - 80% RH, Non-Condensing
PhysicalHousing: Metal
Weight: 2.64 kg ( 5.81 lb )
Dimensions: (L x W x H) 17.21 x 6.43 x 1.73 in. (43.72 x 16.32 x 4.40 cm)
