ViewLink CATx Video Extender Kit

VLK-TMV0RAV0

$350.00

Discontinued
Recommended replacement: Cyberview CV-S101
Alternative options: Contact Us

The Rose ViewLink CATX VLK-TMV0RAV0 is a Single Access VGA Video Extender Kit, Auto EQ.  The ViewLink CATx KVM extenders are the extender of choice for businesses big and small that must control a computer from an extended distance. This video extender allows you to position a computer up to 1,000 feet away from the KVM station using common twisted pair CATx cable. Use any length of data cable up to 1,000 feet, Rose ViewLink will calculate the cable length automatically, set the gain and equalization, and adjust the video skew to provide a crystal clear image. No jumpers to set or knobs to adjust.

Access to your computers is made convenient in a variety of situations. You can locate users away from hazardous industrial environments; locate computers away from areas vulnerable to theft of hardware and data, reduce noise and heat, and increase desk and floor space.

The Rose ViewLink extender is also available in the following models:

  • PS/2 single
  • USB single
  • PS/2 and USB to PS/2 single
  • PS/2 and USB to USB single
  • Options: Automatic skew compensation

Rose VLK-TMV0RAV0 Features & Benefits:

  • Cable length compensation adjustments are automatically performed
  • Video equalization and gain are easily adjusted with simple keyboard commands
  • Supports: SVGA, VGA, XGA, RGB video modes
  • Extend a KVM station up to 1,000 feet away from a CPU using CATx cable (CAT5, 5e, 6, or 7)
  • Video resolutions up to 1600 x 1200 @ 60Hz
  • Compatible with Rose Electronics KVM switches such as ServeView Pro, UltraView Pro, and UltraMatrix
  • Operating system independent
  • Uses a microprocessor to emulate the keyboard and mouse. The keyboard and mouse on the remote unit do not have to be connected for the PC to boot; only the local unit must be connected to the PC

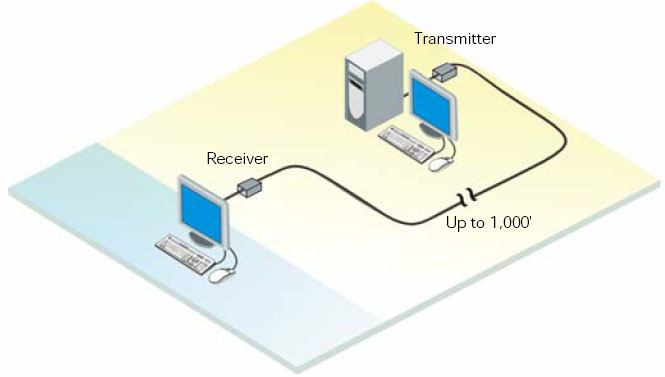

Rose ViewLink CATX Micro-Mini KVM Extender Diagram
Rose ViewLink CATX Micro-Mini KVM Extender Diagram

 Rose VLK-TMV0RAV0 Specifications:

Mechanical Transmitter Receiver
Height 0.63 in. (1.6 cm.) 1 in. (2.45 cm.)
Width 1.3 in. (33 cm.) 2.68 in. (6.8 cm.)
Depth 1.65 in. (42 cm.) 2.625 in. (6.67 cm.)
Environmental
Operating Temperature 0°C - 45°C
Humidity 0% - 80% non-condensing
Power
Local From PC
Remote +5V 1,0 A external
Connectors
Video HD15
Interconnect RJ45- CATx UTP/STP, EIA/TIA 568 (CAT5, 5e, 6, or 7)
Support
Video

VGA, SVGA, XGA, RGB

Video
Resolution

1600 x 1200 (300feet)
1280 x 1024 (500 feet)
1024 x 768 (500 - 1,000 feet)

Compatibility

SVGA, VGA, XGA, RGB

Sync Type Separate/composite TTL level
Levels 0.7V p-p
Standards
Approved Agency CE
