4x4 DVI Matrix Switch with Scaler
VM5404D

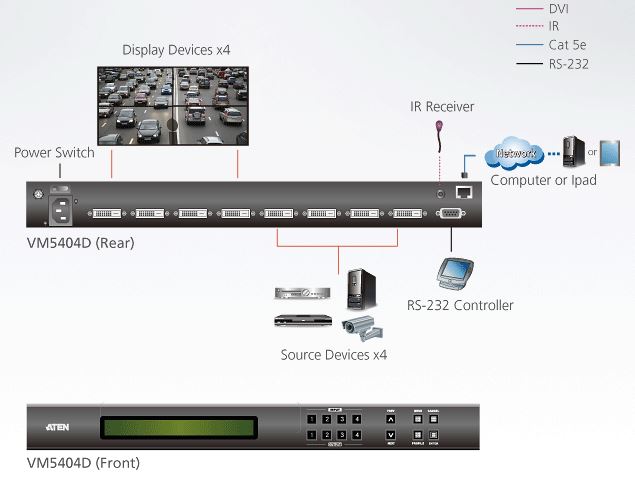

The VM5404D includes seamless switching that employs an FPGA matrix architecture to ensure continuous video streaming, real-time control and stable signal transmission. With a built-in high-performance scaler, the VM5404D easily converts various input resolutions into a array of output resolutions, giving viewers the best image quality across all displays. The switch also integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles for convenient layout customization.
Product Features and Benefits
- 4x4 DVI I/O connections
- Configuration and Control via pushbuttons / IR Remote Control
- System Operation via bi-directional RS-232 serial controller / Browser Graphical User Interface (GUI) / Telnet
- Extends IR transmission via IR extension cable
- Built-in Scaler on each output port converts input resolutions into the display's native resolution, supports scaling 1920 x 1200 resolutions up or down
- Seamless Switch - ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions
- Video Wall - features up to 8 video wall profiles for custom screen layouts via point-n-click web GUI
- EDID Expert - configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screen
- Firmware Upgradeable
- Rack Mountable (1U Design)
Package Contains
- 1x VM5404D 4 x 4 DVI Matrix Switch with Scaler
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
| Video Input | |
| Interfaces | 4 x DVI-D Female |
| Impedance | 100 Ohm |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x DVI-D Female |
| Impedance | 100 Ohm |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps per lane) |
| Max Pixel Clock | 225 Mhz |
| Compliance | HDCP 1.4 Compatible |
| Max Resolutions | 1920 x 1200 |
| Max Distance | Up to 5m |
| Control | |
| RS-232 | 1 x DB-9 Female. 19200 Baud Rate. |
| IR | 1 x Mini Stereo Jack Female |
| Ethernet | 1 x RJ-45 Female |
| Power | |
| Connectors | 1 x 3-Prong AC Socket |
| Consumption | 120VAC, 34.1W; 230VAC, 34.4W |
| Environment | |
| Operating Temperature | 32-122°F (0-50°C) |
| Storage Temperature | -4-140°F (-20-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 7.71 lbs. (3.50 kg) |
| Dimensions (L x W x H) | 17 x 10.22 x 1.73 in. (43.24 x 25.98 x 4.40 cm.) |
UPC 672792006609
EAN 0672792006609
