VOPEX Touch Screen Sharer - 2 Port

VOPEX-2MM-BI

$255.00$234.48
Save $20.52
FREE Shipping on orders over $100

The VOPEX Touch Screen Sharer enables up to 2 touch screen monitors to communicate with 1 CPU. Three different operating modes allow varying degrees of user control. LED's on the front panel will illuminate to indicate mode of operation, DELAY mode program status, and/or which touch screen has control.

Product Features and Benefits

  • For use with NTI's VGA Splitter.
  • Three modes of user control operation.
  • Allow numerous touch screen monitors to communicate with 1 computer.

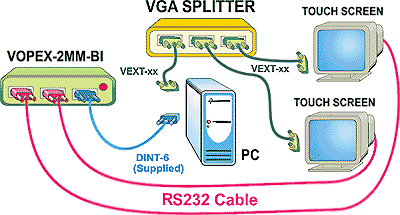

Product Diagram

Touch Screen2 Male 9 pin D serial connectors to the touch screen.
1 Female 9 pin D serial connector to the HOST computer.
MTBF83,547 hrs.
Power100 to 240 VAC at 50 or 60 Hz via AC adapter.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-20 to 140°F (-30 to 60°C)
Relative Humidity17 to 90% non-condensing RH
WarrantyTwo Years
Weight2.5 lb (1.13 kg)
Question: What is the max distance on from the touchscreen to the unit? The touchscreen I have installed is at least 70 feet from the PC.
Answer: Thank you for your inquiry. According to the manual for this device, the RS232 cable that comes with this switch is 6 feet, however, an RS232 extension cable, up to 100 feet, can be added. Check out the manual here: http://www.networktechinc.com/pdf/man051.pdf.

If you are not looking to switch several touchscreens between a single PC, you may be able to use a simple rs232 extender like the Gefen EXT-RS232. (https://www.kvm-switches-online.com/ext-rs232.html)

If you are interested in additional suggestions, please give us a call at 1-877-586-6654 or use our online chat feature to discuss your project in greater detail.
