16-Port VGA/Audio Splitter (250MHz)
VS0116

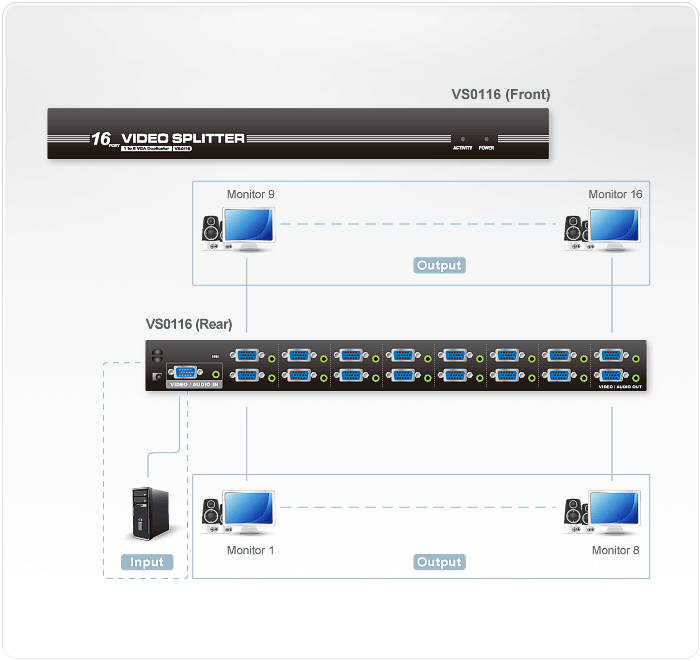

The VS0116 16 Port Video Splitter with Audio duplicates and enhances the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.)Furthermore, it can be cascaded to additional ATEN video splitters to support hundreds of monitors.
Product Features
- One video input to 16 video outputs
- Cascadable to 3 levels - provides up to thousands of video signals
- Audio enabled
- Supports up to 250MHz; bandwidth.
- Long distance transmission - up to 65 m (210')
- High video resolution - 1920 x 1440
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- All metal casing
- Designed for enterprise use - 1U in size
- Supports VGA, XGA, SVGA, UXGA and multisync monitors
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Package Includes
- 1x 16-Port Video Splitter with Audio
- 1x VGA/Audio Cable (1.8m)
- 1x Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 16 x HDB-15 Female |
| Impedance | 75Ω |
| Video | |
| Max Bandwidth | 250 MHz |
| Max Resolution | Up to 1920 x 1440 |
| Max Distance | Up to 30 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female |
| Output | 16 x Mini Stereo Jack Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 3.3W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 6.17 lb (2.80 kg) |
| Dimensions L x W x H | 17.21 x 6.22 x 1.73 in. (43.72 x 15.81 x 4.40 cm) |
UPC 672792151446
EAN 0672792151446
