Rose Electronics 1 In to 4 Out, HD15M In - HD15F Out

VSP-1X4VB

$299.00$268.33
Save $30.67
FREE Shipping on orders over $100

Rose VideoSplitter (VSP-1X4VB)
When it comes to amplifying video from one or two computers, the Rose VideoSplitter (VSP-1X4VB) is the device to use. The Rose VideoSplitter (VSP-1X4VB) was designed to drive video thru long cables with high capacitance.  The VideoSplitter (VSP-1X4VB) is perfect for use in classrooms, conference rooms, point-of-sale, process control, and security systems. You can daisy-chain VideoSplitters (VSP-1X4VB) together to attach additional monitors.  VideoSplitter (VSP-1X4VB) models are available to drive two, four, eight or sixteen monitors. Monitors can be located up to 250 feet away from your computer. If additional distance is required, ask us about our VideoSplitter CAT5.

Rose VideoSplitter (VSP-1X4VB) Features & Benefits:

  • Drives multiple monitors from either 1 or 2 computers
  • Available in two, four, eight or sixteen output models
  • Internal gain adjustment to increase brightness of monitors
  • Ideal for classrooms, conference rooms, point of sale presentations, trading room floors, process control, security systems, airports, restaurants, and many other applications
  • Daisy-chain units to one another with VGA male to female cables to drive 64 or more videos
  • Designed to drive long cables with high capacitance
  • Monitors can be located up to 250 feet away from your CPU with optional extended distance cables
  • Uses VGA style HD15 connectors, male for CPUs, female for monitors
  • Optional A/B switches allow you to switch from two different CPUs
  • Output enable turns off all but port one, so that you can hide the video output while still being able to use one output

Rose VideoSplitter (VSP-1X4VB)

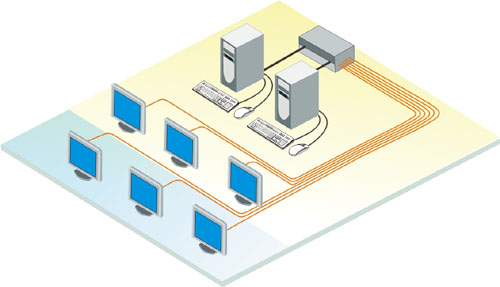

Rose VideoSplitter (VSP-1X4VB) Function Diagram

Rose VideoSplitter (VSP-1X4VB) Specifications:

Mechanical
Height 2.10in
Width 8.85 in
Depth 4.9 in
Weight 3 Lbs.
Environmental 32°F - 131°F (0°- 55° C)
0%-80% non-condensing RH
Power

Input Power External adapter or
optional 90-240 VAC Auto-switching
Output Power 17 VAC CT, 700 ma

Connectors

Power: DIN5
Video in: HD15 Male
Video out: HD15 Female
Video Bandwidth 350 MHz
Video Sync Vertical/Horizontal, supports composite
sync and sync on green

Standards

Rack mount kits 19", 23", or 24"
Chassis Electro-galvanized steel, painted
Controls Power On/Off Switch, 4-Position Dip
Switch, A/B source switch
Indicators Power LED (green)
