SmartAVI XVGA and PS2 Keyboard/Mouse Over Multimode Fiber Extender

VX3000

Discontinued
Recommended replacement: Smart AVI FVX-3000S
Alternative options: Contact Us

The SmartAVI VX3000 extends any PC equipped with XVGA and PS2 keyboard and mouse signals up to 10km with singlemode fibers.  The VX3000 consists of a Transmitter unit and a Receiver unit. These two devices enable long-distance, loss less transmission of DVI video signals between a digital video source and a digital display device. The VX1000 is equipped with DVI-D(Digital Visual Interface) connectors for a single-link and option keyboard and mouse. The VX3000 receiver is small enough to be attached near a projector. With the VX3000, the maximum distance between the source and digital display is is 10km (32,800ft) singlemode fiber.

Applications for the VX3000 fiber extender include:

  • Financial (remote users and server control)
  • Call Centers (co-locate user's computers)
  • Industrial (fiber optic isolation)
  • Information Terminals & Kiosk
  • Airports (air traffic control, passenger information systems)
  • KVM extension where an exceptional image quality is required.
  • Medical - using computer tomographs generates strong magnetic fields, which make it impossible to use monitors. Using fiber optic cables allows remote location of monitors that require a very high screen resolution.

SmartAVI VX3000 Features:

  • Top Image Quality at all Resolutions
  • Video Resolutions up to 1900 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance the remotely located Monitor or from an internal DDCTable
  • Basic device to remotely locate Monitor and Keyboard/Mouse.
  • Dual-Access: in addition to the remote access, a Monitor(all models)
  • Maximum Screen Resolution on all distances:
  • 200m @ Multimode 62,5u.
  • 400m @ Multimode 50u
  • Fiber-Plug type LC
  • Compatible with all operating systems.
  • Compatible with all major KVM Switches

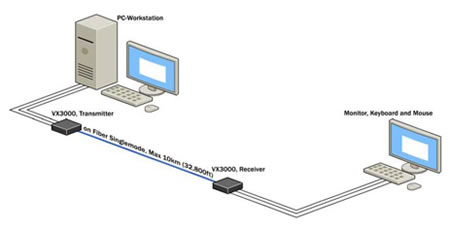

SmartAVI VX3000 Fiber Extender Application Diagram
SmartAVI VX3000 Fiber Extender Application Diagram

SmartAVI VX3000 Specifications:

Mechanical
Dimensions 6.063 x 8.937 x 1.75 in.
(15.4 x 22.7 x 4.5 cm.)
Weight 2.10 lbs. (0.95 kg.)
Environmental
Operating Temperature Approx. 10°C to 45°C
Storage Temperature Approx. -5°C to 55°C
Power
Supply Voltage: p.s.u: 90..240VAC-0,5A-47-63Hz/6VDC-2000 mA
Required local interface app. 6 W
Supported Hardware
Monitor VGA (res.: 1280x1024, plug&play not supported)13Bit/24Bit Color Depth, depending on operating mode
Mouse Support PS2 keyboard mouse, IBM PS2
Keyboard IBM PS2 (power consumption <100mA)
Keyboard/Mouse SUN compatible
Interface (depending on type of device) Remote interface without keyboard app. 6 W or remote interface with keyboard app. 7,2W
