1U 24" 1920 x 1200 LCD Drawer w/ 16 Port VGA KVM


Save $374.00
Model: With KVM Switch
Ports: 16
Users: 1 Local
USB Hub: No
FREE Shipping on orders over $100

The newest CyberView Rackmount LCD monitor X124 series easily adds side access to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the ability to combine this powerful console drawer with an integrated KVM, the CyberView X124 series is sure to handle critical needs in datacenters or limited space server rooms and IT closets. In instances where a rack side is placed against a wall, the X124 allows the user to be positioned facing the wall comfortably rather than snugged up against it.

Features and Benefits

  • 1U 24" widescreen LCD console drawer w/ 16 Port VGA KVM
  • Support 1920 x 1200 native WUXGA Ultra High resolution
  • PIP & Picture by Picture viewing efficiency
  • 104-key keyboard with either touchpad or trackball options
  • SUN Micro and Mac keyboard options available
  • New enhanced aesthetics with molded front handle
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Combo interface for PS/2 or USB input

Optional Configurations (Call for availability)

  • HDMI signal Input
  • SDI signal input
  • 12, 24, 48, 110-125 V DC Power
  • Additional languages supported
  • Multiple Integrated KVM Options

Trackpad or Trackball Options

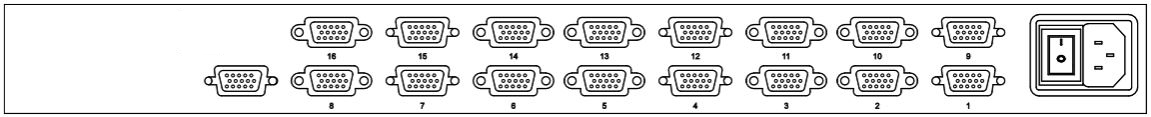

KVM Back

Cyberview X124 Specifications

Height 1.73 in (44 mm)
Width 17.4 in (441.6 mm)
Depth 31.5 in (800 mm)
Form Factor 1U rackmount on slide out rails
Weight 35.4 lbs. (16.1 kg)
Operating Temperature 32 to 122°F (0° to 50°C)
Storage Temperature 23 to 140°F (-5° to 60°C)
Relative Humidity 5-90% Non-Condensing
Shock 10G Acceleration (11 ms duration)
Vibration 5-500Hz 1G RMS random vibration
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Screen On: 65W; PowerSave: 30W
LCD Display
Diagonal Size 24.1" Widescreen TFT
Max Resolution 1920 x 1200
Brightness (cd/m2) 300
Color Support 16.7 M
Contrast Ratio 1000:1
Viewing Angle 178° x 178°
Display Area 518 x 324 mm
Console Port DVI-D
Compliance FCC, CE, RoHS2, Reach
