UXGA/YUV/YC, Stereo Audio CAT5 Transmitter

XTA-TXS

$125.00$97.40
Save $27.60
FREE Shipping on orders over $100
smartavi_madeinusa

XT-AV Transmitter is a high resolution UXGA and stereo audio extender system (transmitter and receiver) designed to broadcast desktop video, and stereo audio signals over unshielded twisted pair (UTP) cabling

Applications

  • Presentations
    • Commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
  • Data Broadcasting
    • News, stock prices, sports results, and flight information can be broadcast in real time to various monitors.
  • Learning and Training
    •  Educational presentations to multiple locations, in schools and in other training facilities

Features

  • Uses easy to install, inexpensive CAT-5/5e/6/7/8
  • Each Output reaches up to 1,000 feet (300 m).
  • Supports hih resolution video up to 1900x1200.
  • 300 MHz Bandwidth.
  • Sends high-resolution VGA and Stereo Audio
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact Metal Case Enclosure.
  • External power supply

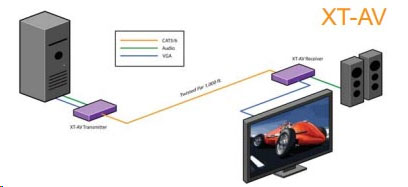

diagram

SmartAVI XTA Transmitter Specifications

Mechanical
Height 0.9  in. (2.28 cm)
Width 3.5 in. (8.89 cm.)
Depth3.5 in. (8.89 cm.)
FormatRGBHV, RGsB, YUV, Y/C, CVBS
ResolutionUp to 1900x1200 VGA, SVGA, XGA, SXGA
Connector TypeHigh density HD15
Signal TypeStereo unbalanced
Audio Connector3.5 mm jack socket
Power 5VDC @ .5A
UPC / EAN Barcode icon
UPC 813280024044
EAN 0813280024044
