Minicom by Tripplite Mini Cat7 / Cat6 / Cat5 KVM Extender

0DT23008A

$239.00$227.13
Save $11.87

Discontinued
Replaced by: Tripp Lite B013-330
Alternative options: Contact Us

The Minicom by Tripplite 0DT23008A Mini KVM Extender is a high value, affordable solution for extending your KVM console from your computer or KVM switch to a distance of up to 70m/230ft away over clutter free CAT5/6/7 cables.

If you're working from a small office, home office (SOHO), the Mini KVM Extender is your preferred extended control solution - just place the KVM console where you want and the computer where you need and you're all set to go!

For industrial applications such as manufacturing lines or clean rooms, the Mini KVM Extender provides maximum safety and security allowing you to place computers and servers in a single centralized location, far away from any production hazards.

IT managers seeking extended access to server rooms in a tightly secured environment will find the Mini KVM Extender particularly efficient and easy to use. Ideal also for presentation and training applications, the Mini KVM Extender provides flexibility and security coupled with highly attractive pricing.

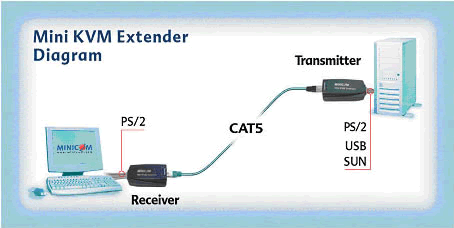

The Minicom by Tripplite Mini KVM Extender is made up of 2 micro sized, compact units on both ends: the Transmitter unit that connects to the computer and the Receiver unit that connects to the KVM hardware. The Mini KVM Extender is a pure hardware solution making it both software and network independent.

Minicom by Tripplite Mini 0DT23008A Features and Benefits

  • More security - Look after your investment. Store computers in locked, environmentally controlled rooms
  • More flexibility - Place your KVM console where you want and your computer where you need
  • More efficiency - Make your set up work for you instead of working for your set up
  • Attractive - Lowest price for highest quality KVM extender
  • Preserve your investment - Perfect add-on for existing installations- Extend KVM console 70m/230ft from server room, rack or KVM switch
  • Plug and play solution
  • Micro sized - Smallest form factor for sleek Transmitter and Receiver units. Once installed you won't even know they exist!
  • KVM-over-CAT5 - Low cost, low density, easy to install Standard CAT5/6/7 cable
  • Compact retail package
  • Peace of mind with Minicom by Tripplite's 3-year warranty
  • Save money - External power needed only on receiver end, Transmitter draws power directly from KB port
  • Pure hardware - No software conflicts, network independent
  • No compatibility issues! - Connect and control through any of Minicom by Tripplite's wide range of KVM solutions

Note: A 5V power supply is included.

0DT23008A Specification:

Mechanical
Height 0.9 in. (25.3 mm.)
Width 1.8 in. (46 mm.)
Depth 3.5 in. (89 mm.)
Environmental
Operating Temperature 0° C to 40° C/32° F to 104° F
Storage Temperature -40° C to 70° C/-40° F to 158° F
Power Transmitter Reciever
Supply  From connected computer External power adapter 5VDC (included)
Cables & Connectors Transmitter Receiver
KVM Built-In N/A
VGA   HDD15F
Keyboard/Mouse   MiniDin6F
System RJ45 RJ45
System Cable CAT5/6/7 cable 2x4x24 AWG Solid Wire
Maximum Distance 70m/230ft
Mouse Support 2 or 3 or 5 button PS/2, Wheelmouse
Operating Systems DOS, Windows (3x, 9x, NT, ME, 2000, XP, 2003), Novell, Linux, UNIX, HP UNIX, QNX, SGI, FreeBSD, BeOS, Open VMS
Screen resolution Up to 1600X1200 @ 75Hz (depends on cable length)
Question: Does the extender have male connections for one end and female connections for the other end.
Answer: Thank you for your inquiry. Yes, this extender has male on one unit and female on the other.
