Minicom RackManager 17" + Universal Phantom Manager

0SU52026

$2,790.00

Discontinued
Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

The Minicom 0SU52026 RackManager is a slim, rack mountable, console drawer that occupies just 1U of rack space. It's the neat, organized way to control your data rack. The Minicom RackManager comes with all the hardware you need to mount it, and is easily installed with just four screws. To access your servers, just slide out the 0SU52026 drawer and flip it open to use the large, high resolution, clear 17" TFT LCD display (VGA /SVGA /XGA compatible) with front-panel display controls for easy adjustment, and high-quality 16mm trackball. When not in use, the keyboard is concealed by the front door.

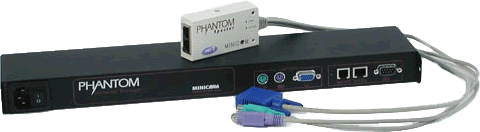

The 0SU52026 rackmount LCD comes with a built-in Phantom KVM switch. The Phantom switch includes Minicom's Universal Phantom Manager (UPM) which fits to the back of the RackManager and small remote Specter units which connect to each of your servers via standard CAT5 cable.  With the built-in Universal Phantom Manager and remote Specter units, your RackManager becomes a 63 port KVM switch. Just connect the Specter units to the UPM via CAT5 cable in a daisy chain. Use the Specter PS/2, SUN, USB, or RS232 to support multiple platforms (sold separately). For multi-user functionality, add the Phantom MXII (also sold separately).

Minicom Built-In Phantom KVM Switch
Minicom Built-In Phantom KVM Switch

0SU52026 Features:

  • Sleek & compact - utilizes just 1U, 44.45mm/1.75" of rack space
  • Integrated KVM - Built-in Minicom Phantom Specter Cat5 KVM Switch
  • State-of-the-art display - 17" SAMSUNG TFT LCD
  • Robust - high-quality, heavy-duty 16mm trackball
  • Space-saving - takes less space than standard keyboard, monitor, & mouse
  • Organized - save mess and clutter in your server room and racks
  • Easy glide - smoothly pull out and flip-up monitor

Minicom 0SU52026 Technical Specifications:

Mechanical
Height 1.74 in. (44 mm.)
Width 19 in. (483 mm.)
Depth 25.5 in. (647 mm.)
Environmental
Operating Temperature 0° to 40°C/104°F
Storage Temperature  0° to 65°C/149°F
Power 90-240 VAC, 50-60 Hz, auto sensing
Keyboard/Mouse
Keyboard Connecting MiniDIN6
Keyboard Compatibility PS/2
Mouse Connecting  MiniDIN6
Trackball Mouse Compatibility PS/2
Resolution
Optimum 1280x1024@60Hz
Maximum 1280x1024@60Hz
Colors 16.7 million
