Minicom PX PS/2 IP Gateway

0SU70018

$545.00

Discontinued
Recommended replacement: Adder IPEPS
Alternative options: Contact Us

The Minicom PX 0SU70018 is a high performance KVM IP Gateway which provides complete BIOS level access and control of your computer or server, from any location.  The compact PX comes with 128-bit SSL security as standard, and is equally adept in small business environments, remote support applications, and Enterprise data centers.

PX lets you instantly access the remote computer's BIOS, and accurately diagnose and even fix system faults - saving you the time and cost of a field technician roll out. PX is ideal for market applications running mission critical services on a single computer/server such as medical, telecom, security, Software as a Service, and banking and finance.

The single-port PX solves the problem of blocked server access in the data center. With a number of PX devices connected, multiple remote users can control multiple servers, all at the same time. Additional PX IP gateway devices can be added as your data center grows and the entire inventory can be managed under Minicom's KVM.net global centralized server management system. The combination of KVM.net and PX is ideal for corporations operating servers at multiple sites such as testing labs, university campuses, branch offices, and multi-floor facilities. The rack-mountable PX also uses Power over Ethernet (PoE) technology for efficient, clutter free power management.

Note:

  • The PX PS/2 requires a PoE switch
  • The Minicom PX is also available in a USB version (part # 0SU70028).

Minicom PX IP Gateway Features

  • Single port, palm-sized device
  • Absolute Mouse Support for reduced installation hassle
  • BIOS level access over IP connection
  • Cost-effective & easily scalable
  • KVM.net enabled
  • Ideal for isolated/widely distributed servers
  • Power over Ethernet & external power option

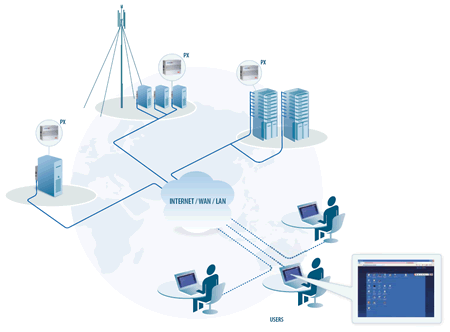

Minicom PX KVM IP Gateway Application Diagram
Minicom PX KVM IP Gateway Application Diagram


Minicom 0SU70018 Specifications:

Mechanical
Height 1.2 in. (33 mm.)
Width 4.13 in. (105 mm.)
Depth 3.15 in. (80 mm.)
Shipping Dimensions
(HxWxD)
4.1 x 9.0 x 5.9 in.
(105 x 230 x 150 mm.)
Weight 0.66 lbs. (0.3 kg.)
Shipping Weight 1.54 lbs. (0.7 kg.)
Environmental
Operating Temperature 0°C to 40°C / 32°F to 104°F
Power
Supply PoE 4.5W
Maximum Current Consumption Less than 135mA from PoE
Operating systems
Host Computer DOS, Windows, Novell, Linux and SUN Solaris
Client Computer Windows: 2000, XP, 2003 Server or Vista. With IE 6.0 or 7.0
Resolution
Host Computer Up to 1600x1200@85Hz
Client Computer Recommended - client computer resolution should be higher than resolution on the host computer
Connections
Ethernet RJ45 - 10/100 Mbit/sec auto-sensing
Computer Built-in cable - Screen HDD15, Keyboard/Mouse MiniDIN6
