Minicom UTP Video Splitter Remote Unit with Audio, 360ft

0VS21007

$115.00$104.55
Save $10.45

Discontinued
Recommended replacement: Aten VS1204T
Alternative options: Contact Us

The Minicom 0VS21007 is a UTP Video Splitter Remote Unit with Audio that broadcasts up to 360ft. The 0VS21007 is part of the Minicom AV broadcast solutions.  The CAT5 UTP VGA Splitter simultaneously broadcasts, in real-time, video images to multiple remote screens. Using advanced CAT5 cable technology video images can be broadcast to distances of up to 250m/820ft. Cascaded it can broadcast to dozens of screens simultaneously.   The CAT5 VGA Splitter is the best solution for places where there is a need for sharing of information, in real-time, at multiple locations. For example: corporate showrooms, banks/stock exchanges, trade shows, training centers, train/bus stations and airports.

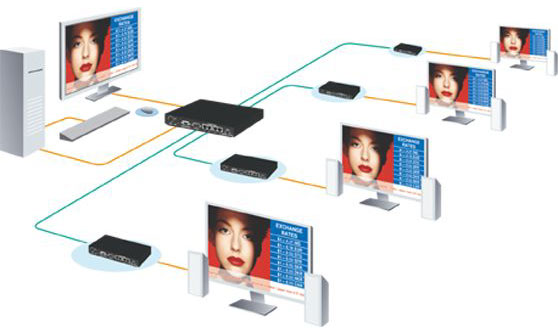

Minicom UTP VGA Splitter Application Diagram

Minicom UTP VGA Splitter Application Diagram

Minicom 0VS21007 Features and Benefits:
  • Multimedia broadcasting - both sound and video over a single CAT5 cable
  • Advanced CAT5 technology - low density cabling that is easy to install
  • Pure hardware solution - no software conflicts
  • Multi-media broadcasting over 110m/360ft
  • Simple plug-and-play installation
  • Compatible with all major brands of sound cards
  • Cascadable for bigger installations
  • Sturdy metal casing

0VS21007 Specifications:

Mechanical
Height 1.22 in. (31 mm.)
Width 6.18 in. (157 mm.)
Depth 3.11 in. (79 mm.)
Environmental
Operating Temperature 0° C to 40° C/32° F to 104° F
Storage Temperature -40° C to 40° C/-40° F to 104° F
Power
Supply External 110V or 220V 9V 2A
Video
Video VGA, SVGA, XGA
Resolution 1280x1024 @75Hz
System Cable CAT5, FTP Solid Wire 2x4x24 AWG RJ45
Maximum Distance 110m/360ft
Cascadable Yes
VGA to CPU HD15M-HD15F
