4-Port VGA/Audio Cat 5 Splitter / Extender
VS1204T
Save $79.01

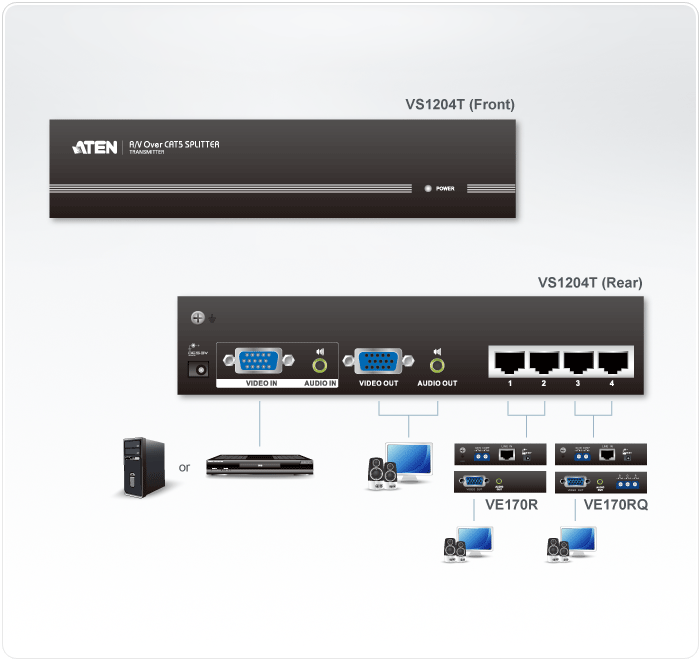

The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
Product Features
- One audio/video input to 4 audio/video outputs via Cat 5e cable
- Supports local display + 4 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality - up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Package Includes
- 1x VS1204T A/V Over Cat 5 Splitter
- 1x Power Adapter
- 1x Mounting Kit
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female 4 x RJ-45 Female |
| Impedance | 75Ω |
| Video | |
| Max Bandwidth | 300 MHz |
| Max Resolution/Distance | Up to 1920 x 1200@60Hz@150m; 1280 x 1024@60Hz@300m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female |
| Output | 1 x Mini Stereo Jack Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 1.33W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 1.3 lb (0.59 kg) |
| Dimensions L x W x H | 7.87 x 2.96 x 1.73 in. (20.00 x 7.51 x 4.40 cm) |
UPC 672792002656
EAN 0672792002656
