Fiber Single-Mode 1.25G SFP Transceiver Module up to 6.2mi/10KM (2 pcs)

2A-137G

$290.00$222.76
Save $67.24
FREE Shipping on orders over $100

The 2A-137G Fiber Single-Mode 1.25G SFP Transceiver Module provides 1 GbE connectivity up to 10 kilometers. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-137G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm which makes it a cost-effective and high performance transceiver.

  • Extend your network connectivity up to 10 kilometers
  • Differential Inputs and Outputs
  • Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
  • Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
  • Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
  • Operation Temperature from 0° C to 70° C
  • RoHS Compliant

Aten 2A-137G Package Contents

Aten 2A-137G Back Rear
  • (2) 2A-137G Fiber Single-Mode 1.25G SFP Transceiver Module

Aten 2A-137G Resources

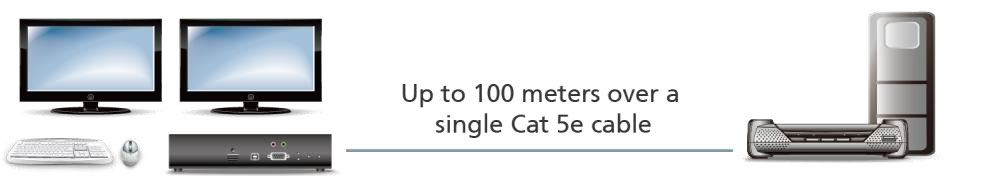

Aten 2A-137G Application Diagram

Aten 2A-137G Datasheet (PDF)

UPC / EAN Barcode icon
UPC 672792007910
EAN 0672792007910
