SwitchView 4-Port PS/2 or USB 1.1 KVM Switch



Replaced by: Avocent SV240
Recommended replacement: Belkin F1DS104J
Alternative options: Contact Us

The all-in-one Avocent SwitchView (4SVPUA10-001) multimedia desktop KVM switch lets you switch between USB or PS/2 systems, share your USB devices and control multimedia applications. The Avocent SwitchView (4SVPUA10-001) MM1 model provides independent switching for KVM and two USB 1.1 hub ports. With the Avocent SwitchView (4SVPUA10-001) multimedia KVM switch, you can use one compact device to control multiple PCs and share access to your USB devices; digital camera, CD ROM, PDA, scanner or printer.

Note: Cables are not included

Avocent SwitchView (4SVPUA10-001)

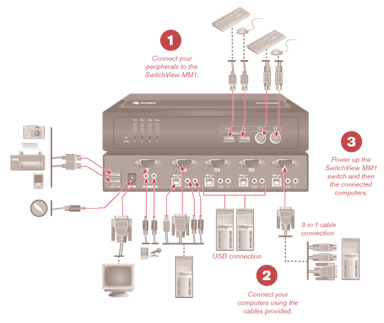

Avocent SwitchView (4SVPUA10-001) Diagram

Avocent SwitchView (4SVPUA10-001) Features and Benefits

  • Multiplatform USB or PS/2 system support
  • Integrated USB hub for sharing of USB peripherals/devices
  • Audio feature share speakers and a microphone
  • Independent switching for KVM and two USB 1.1 hub ports
  • 2048 x 1536 high VGA resolution ideal for desktop graphical applications
  • Push-button or keyboard hotkeys for channel selections
  • Auto scanning allows easy monitoring of attached computers
  • Color-coded cables and connectors provide quick installation
  • Easily add computers without powering down the KVM switch or attached computers
  • Power supply included
  • Error free boot up with keyboard and mouse emulation
  • Backed by Avocent 2 year warranty and technical support
  • SwitchView Multimedia model is also available with USB 2.0 in a 2-port model

Avocent SwitchView (4SVPUA10-001) Specifications:

Height 1.7 in (4.3 cm)
Width 5.5 in (13.97 cm)
Depth 3.5 in (8.89 cm)
Weight 1 lb (.45 kg)
Power Frequency Input 9V DC @1A external transformer
Supported Hardware
Computers PS2 or USB (1.1)
Monitor (VGA, SVGA, XGA, QVGA, SXGA, UXGA, QXGA) Maximum resolution of 1920 X 1200
Peripherals PS/2 Keyboard, PS/2 Mouse, IntelliMouse (PS/2 only), IBM Scroll Point, Logitech 2 Button, Logitech Trackball Scroller, Microsoft Trackball Scroller, Microsoft Scroller, Microsoft Intelleye Five Button
Approved Agency En55022 Class B, EN55024,61000-3-2,6100-3-3, FCC 15 Class B, CE
