ADDER DVA: Small Form Factor VGA to DVI-D Video Converter

DVA

$140.00$126.00
Save $14.00
FREE Shipping on orders over $100

ADDER DVA is a high performance VGA to DVI-D video converter that transforms analog signals to digital. Placed in-line and USB powered this solution fits well with the AdderLink Infinity range of products. It converts VGA signals, up to 1920 x 1200 @ 60Hz, into a DVI standard equivalent.

  • Analog to digital video conversion up to 1920 x 1200 (165MHz max. pixel frequency)
  • EDID management to ensure clean operation
  • Adjustment control for alignment, tone, sharpness and brightness
  • Adjustment control for alignment, tone, sharpness and brightness
  • USB powered with USB feed through

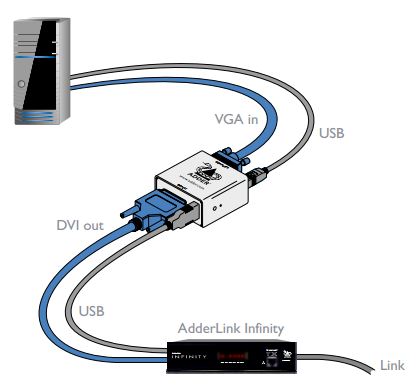

Adder DVA Application

High quality VGA to DVI-D conversion

Adder DVA is a high quality VGA to DVI-D converter supporting most resolutions up to 1920 x 1200 @ 60Hz.

Auto calibration

Adder DVA auto calibrates for horizontal and vertical position. Manual adjustment is also available through the Virtual Control Panel (VCP) app, if required.

EDID management

EDID management is a critical element in VGA/DVI-D conversion, to ensure the correct settings are passed to the computer's graphics card.

USB powered with pass through

Adder DVA requires no separate power adapter and instead draws less than 300mA in operation from a spare USB port on the computer. A USB pass-through port is made available on the Adder DVA to allow a low-powered USB device to be connected; thus, the same total number of USB ports remain available for other uses.

Flash upgradeable

Adder DVA is flash upgradeable, allowing custom EDID adjustment for non-standard operations. Upgrades are achieved via the USB port.

Virtual control panel app over DDC-CI

Adder DVA is supplied with a Virtual Control Panel (VCP) app which allows brightness, tone and sharpness to be adjusted. Vertical and horizontal video alignment can also be adjusted, where necessary. The VCP app contains a test pattern to accurately display the changes. EDID management options can also be changed and the EDID's of the monitors can be displayed.

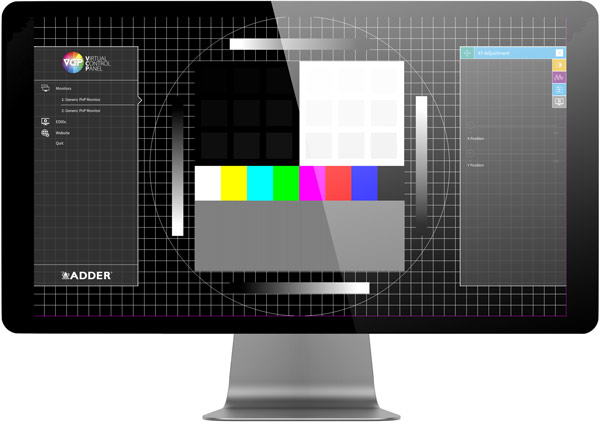

Adder DVA - Virtual Control Panel (VCP)

Adder DVA Specifications

Hardware CompatibilityAll computers with VGA output
VGA inputThe system supports resolutions to a maximum of 1920 x 1200 @ 60Hz with pixel frequencies up to 165MHz
DVI OutputConforms to the DVI 1.0 standard. Resolutions supported to a maximum of 1920 x 1200 @ 60Hz with pixel frequencies up to 165MHz
Software compatibility for VCP appWindows 7 and above with .NET v3.5
Computer connectionsVGA DB15 x 1, USB type B x 1
Peripheral connectionsDVI-D x 1, USB type A x 1
Physical design Compact case, robust metal construction. 55mm/2.16" (w), 25mm/1.0" (h), 70mm/2.75" (d), 0.1kg/0.2lbs.
PowerUSB powered - less than 300mA (1.5W)
Operating temperature0 to 40°C / 32 to 104°F
Approvals CE, FCC
