Avocent User Station



Replaced by: Avocent HMX5100R-001
Recommended replacement: Avocent MX Matrix KVM
Alternative options: Contact Us

The Avocent AMX5130 desktop user station provides access from your desk to an AMX KVM matrix switch system and one local computer.  The AMX5130 user station connects to your multi-platform PS/2 or USB KVM peripherals and sends the KVM signals over an industry-standard UTP cable to an Avocent AMX matrix switch. In addition, this user station brings audio and serial support to the AMX user supporting stereo speakers and mono microphone.  Two UTP connections support AMIQs or a combination of AMX switch system and an AMIQ, allowing for multi-computer configurations along with local computer support.

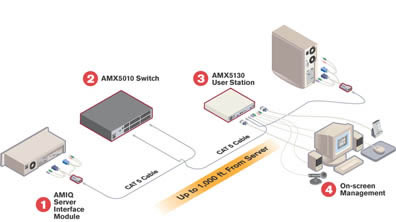

Avocent AMX5130 Diagram
Avocent AMX5130 Diagram

Avocent AMX5130 Features and Benefits

  • Provides switching of stereo speakers and mono microphone

  • Provides switching of serial up to 38.4k

  • Supports connections to all AMX switches and IQs

  • Provides USB keyboard and mouse at any user

  • Ships with the AMIQDM server interface module for convenient connections from PS2-based servers to the AMX switch including audio and serial

  • Supports multi-platform peripherals: PS/2 and USB (including PC, Mac and Sun USB keyboards)

  • Allows you to access and control one local computer

  • Provides high-quality video

  • Automatically compensates for varying cable types and lengths: CAT5, CAT5e and CAT6 including GigaFlex

  • Adjusts for skew between RGB signals each time a switch is made to a server

  • Offers video resolutions up to 1280 x 1024 at 1,000 feet

  • Works with patented OSCAR on-screen graphical interface to assist you with configuration and server selection

Avocent AMX5130 Specifications:

Height 1.74 in. (4.4 cm)
Width 10.9 in. (27.9 cm)
Depth 11.5 in. (29.2 cm)
Weight 5 lbs. (2.0 kg)
Operating Temperature 32F (0C) to 122F (50C)
Storage Temperature 4F (-20C) to 122F (50C)
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz
Input 1 Amp MAX
Supported Hardware
Computers PS/2, Sun and USB with audio and serial
Monitor VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75Hz resolution at 100' or 1280x1024 @ 75Hz at 1000'
Peripherals PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 6, Mac USB
3.5mm male stereo audio out, 3.5mm male mono audio in, serial 9pin D male full hardware flow control
Approved Agency UL, cUL, FCC, VCCi, CE, C-Tick, Nemko, GOST, IRAM
UPC / EAN Barcode icon
UPC 636430026893
EAN 0636430026893
Question: I have noticed the switch uses ps/2 drivers for the mouse instead of HID compliant drivers. This prevents a usb LED mouse from scrolling within webpages. Is there anyway to change the driver the switch uses for the mouse?
Answer: Thank you for your inquiry. Avocent suggested contacting their tech support to see if they have a driver or other solution for this (888) 793- 8763.

Question: Can I control an Avocent AMX5010 from an Avocent AMX5030?
Answer: Thank you for your inquiry,

If your total number of servers is greater than 32 (supported by the AMX5000) or 64 (supported by the AMX5010), you can epxand / connect multiple AMX switches together to give dozens of users control of hundreds of servers from any one set of peripherals ('Tiered AMX System') - Please see the illustration below for reference.

Avocent AMX System Tiered - Expansion

For more information on 'Tiering' your AMX system, please refer to the AMX Installer Guide

Question: I need the Letter Of Volatility for the AMX5130 unit. Thanks
Answer: Thank you for your inquiry,

See below:
Avocent AMX5130 Letter Of Volatility.
