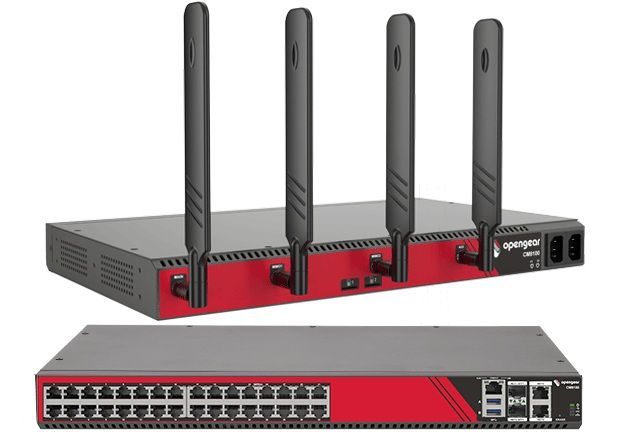

32-Port Console Server w/ 10GB Ethernet and 5G Cellular Modem

Please Note: This appliance requires the purchase of a minimum of 1 year Foundation Support at the time of purchase. See available support options here: Opengear Support options

The OpenGear CM8132-10G-C is OpenGear's latest high-density console manager with support for 10GB Ethernet, built to keep critical infrastructure reachable under any condition. The CM8132-10G-C offers 10GbE and a native 5G cellular modem, for enhanced out-of-band management capabilities and supports up to 32 serial devices. With a TPM 2.0 module, it ensures enterprise-grade security. Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's LighthouseŽ Software.

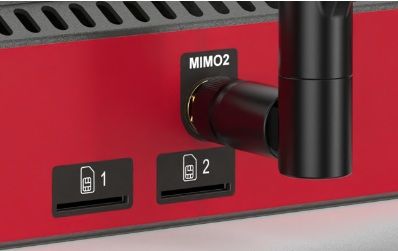

The cellular interface is certified for global deployments with most carriers and provides a 5G NR Sub-6 and LTE CAT20 interface supporting most frequencies in use. To activate the cellular interface, you should contact your local cellular carrier and activate a data plan associated to the SIM installed. SIM sold separately - Choosing a Cellular Plan, Supported carriers and services.

Features and Benefits

• 32 serial ports for out-of-band management of network and server devices
• Enables Data Center automation with Python and Docker support
• Embedded physical security using TPM 2.0 module
• Dual power supplies with independent monitoring
• 10Gb SFP+ uplinks connect directly to high-speed networks
• Global cellular modem for cellular resiliency - Native, globally certified 5G backwards compatible with 4G and compatible with external cellular extenders for additional flexibility
• Port auto-discovery simplifies configuration of serial settings and port labels
• Eliminates the need for serial adapters with selectable software serial ports
• Four network interfaces, 2x 10GbE SFP+ uplinks and 2x 1GbE ports
• 1 x Console Port RJ45 RS-232 Console Port - Cisco rolled X1 pinout, baud rate 9600
• RS-232 Software selectable Pinout (X1 or X2) Serial Ports 50 to 230,400bps, Provides direct connection to device console ports, no adapters needed
• 2 x USB 3.0 host ports, Can be used for external storage or to manage device console ports
• Remote Access: Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
• All appliances ship with two C14 power cables standard

CM8132-10G-C Product Specifications

Overview

• 32 x RS-232 Serial Ports - RJ45 RS-232 Software Selectable pinout (X1 or X2)  50 to 230,400 bps, Provides direct connection to device console ports, no adapters needed
• 2 x 10G SFP+ Fiber and 2 x 1000 Base-T Ethernet
• Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
• Dual USB 3.0 host ports for peripherals, to manage device console ports, and/or additional storage
• Dual socket universal IEC C14 inlet 100-240V AC 50/60Hz2

Global Cellular Interface

• Module: Sierra Wireless EM9291
• Aggregation: 5G NR Sub-6 & LTE CAT20
• Cellular Certifications: PTCRB, GCF, Verizon and AT&T

Power

• Dual AC Dual socket universal IEC C14 inlet 100-240V AC
• Power Consumption Less than 15 W (85 BTU/h) typical

Dimensions and Weight

• 17.3" x 10.5" x 1.75" (440 x 265 x 44 mm)
• 8 lbs (3.5 kg)
• 1RU with rack mounts

Environmental

• Ambient operating temperature: 41°F to 122°F (5°C to 50°C)
• Storage temperature: -20°F to +140°F (-30°C to +60°C)
• Humidity: 5% to 90%

Emissions

• 47 CFR Parts: 15B, ICES-003 Issue 7, EN55032:2015+A11:2020, ICES-003 Issue 7, AS/NZ, CISPR 32:2015, VCCI-CISPR 32:2016, EN 301 489-1:2019

Immunity

• EN 61000-3-2-2019, IEC 61000-3-2:2018, EN/IEC 61000-3-3:2013, EN 61000-4-2:2009, IEC 61000-4-2:2008, EN 61000-4-3:2006:+ A1:2008 + A2:2010, IEC 61000-4-3:2006 + A1:2007 + A2:2010, EN/IEC 61000-4-4:2012, IEC 61000-4-8:2009, EN/IEC 61000-4-11:2004

Other Approvals

• CE, IEC 60950, IEC 62368, RoHS compliant.

Memory & CPU

• 1.6 GHz Dual-Core ARM Cortex-A9 SoC (Marvell 88F6820)
• 2GB DDR4 SDRAM
• 32GB eMMC

MTBF

• 150,000 Hours

Security & Authentication

• AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, with local fallback, Embedded Firewall, IPSec and OpenVPN, Trusted Platform Module 2.0

Automation & Scalability

• Opengear, API access, Docker support, Python, Perl and bash support, ZTP, SNMP-Standard MIBs

Opengear CM8132-10G-C Package contents

• Console Server CM8132-10G-C
• Four Cellular antennas (Part# 569052)
• Rack Mount Kit (Part# 590037)
• Two rack ears with six M4 screws
• Four M5mm caged nuts
• Four M5x15mm rack screws
• One CAT5 Patch Cable 5'
• One DB9F-RJ45 rollover serial adapter (Part# 319018)
• Two A/C Power cables
• Quick Start Guide
• Lighthouse insert

UPC 843295106732
EAN 0843295106732
