32-Port Console Server w/ 10GB Ethernet

Please Note: This appliance requires the purchase of a minimum of 1 year Foundation Support at the time of purchase. See available support options here: Opengear Support options

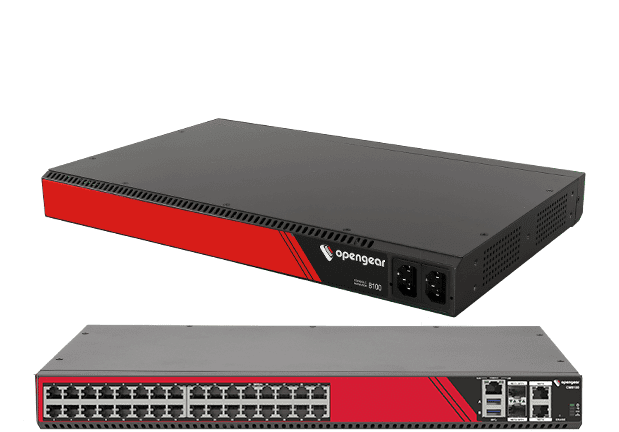

The OpenGear CM8132-10G is OpenGear's latest high-density console manager with support for 10GB ethernet, built to keep critical infrastructure reachable under any condition. The CM8132-10G offers 10GbE, for enhanced out-of-band management capabilities and supports up to 32 serial devices. With a TPM 2.0 module, it ensures enterprise-grade security. Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's LighthouseŽ Software.

Features and Benefits

• 32 serial ports for out-of-band management of network and server devices
• Enables Data Center automation with Python and Docker support
• Embedded physical security using TPM 2.0 module
• Dual power supplies with independent monitoring
• 10Gb SFP+ uplinks connect directly to high-speed networks
• Port auto-discovery simplifies configuration of serial settings and port labels
• Eliminates the need for serial adapters with selectable software serial ports
• Four network interfaces, 2x 10GbE SFP+ uplinks and 2x 1GbE ports
• 1 x Console Port RJ45 RS-232 Console Port - Cisco rolled X1 pinout, baud rate 9600
• RS-232 Software selectable Pinout (X1 or X2) Serial Ports 50 to 230,400bps, Provides direct connection to device console ports, no adapters needed
• 2 x USB 3.0 host ports, Can be used for external storage or to manage device console ports
• Remote Access: Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
• All appliances ship with two C14 power cables standard

CM8132-10G Product Specifications

Overview

• 32 x RS-232 Serial Ports - RJ45 RS-232 Software Selectable pinout (X1 or X2)  50 to 230,400 bps, Provides direct connection to device console ports, no adapters needed
• 2 x 10G SFP+ Fiber and 2 x 1000 Base-T Ethernet
• Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
• Dual USB 3.0 host ports for peripherals, to manage device console ports, and/or additional storage
• Dual socket universal IEC C14 inlet 100-240V AC 50/60Hz2

Power

• Dual AC Dual socket universal IEC C14 inlet 100-240V AC
• Power Consumption Less than 15 W (85 BTU/h) typical

Dimensions and Weight

• 17.3" x 10.5" x 1.75" (440 x 265 x 44 mm)
• 8 lbs (3.5 kg)
• 1RU with rack mounts

Environmental

• Ambient operating temperature: 41°F to 122°F (5°C to 50°C)
• Storage temperature: -20°F to +140°F (-30°C to +60°C)
• Humidity: 5% to 90%

Emissions

• 47 CFR Parts: 15B, ICES-003 Issue 7, EN55032:2015+A11:2020, ICES-003 Issue 7, AS/NZ, CISPR 32:2015, VCCI-CISPR 32:2016, EN 301 489-1:2019

Immunity

• EN 61000-3-2-2019, IEC 61000-3-2:2018, EN/IEC 61000-3-3:2013, EN 61000-4-2:2009, IEC 61000-4-2:2008, EN 61000-4-3:2006:+ A1:2008 + A2:2010, IEC 61000-4-3:2006 + A1:2007 + A2:2010, EN/IEC 61000-4-4:2012, IEC 61000-4-8:2009, EN/IEC 61000-4-11:2004

Other Approvals

• CE, IEC 60950, IEC 62368, RoHS compliant.

Memory & CPU

• 1.6 GHz Dual-Core ARM Cortex-A9 SoC (Marvell 88F6820)
• 2GB DDR4 SDRAM
• 32GB eMMC

MTBF

• 150,000 Hours

Security & Authentication

• AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, with local fallback, Embedded Firewall, IPSec and OpenVPN, Trusted Platform Module 2.0

Automation & Scalability

• Opengear, API access, Docker support, Python, Perl and bash support, ZTP, SNMP-Standard MIBs

Opengear CM8132-10G Package contents

• Console Server CM8132-10G
• Rack Mount Kit (Part# 590037)
• Two rack ears with six M4 screws
• Four M5mm caged nuts
• Four M5x15mm rack screws
• One CAT5 Patch Cable 5'
• One DB9F-RJ45 rollover serial adapter (Part# 319018)
• Two A/C Power cables
• Quick Start Guide
• Lighthouse insert

UPC 843295105155
EAN 0843295105155
