48-Port Console Server

Please Note: This appliance requires the purchase of a minimum of 1 year Foundation Support at the time of purchase. See available support options here: Opengear Support options

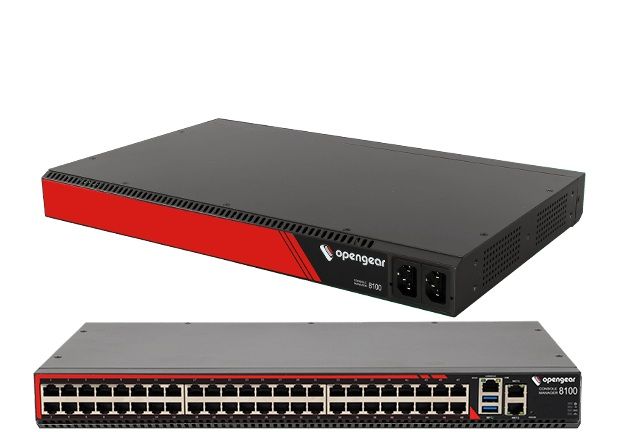

The OpenGear CM8148 is OpenGear's latest high-density console manager, built to keep critical infrastructure reachable under any condition. The CM8148 offers 1GbE, for enhanced out-of-band management capabilities and supports up to 48 serial devices. With a TPM 2.0 module, it ensures enterprise-grade security. Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's LighthouseŽ Software.

Features and Benefits

• 48 serial ports, out-of-band management of network and server devices
• Enables Data Center automation with Python and Docker support
• Embedded physical security using TPM 2.0 module
• Dual power supplies with independent monitoring
• Port auto-discovery simplifies configuration of serial settings and port labels
• 2 x Ethernet Ports - 10/100/1000 Ethernet port with 1500V AC Isolation and ESD Protection
• 1 x Console Port RJ45 RS-232 Console Port - Cisco rolled X1 pinout, baud rate 9600
• Cisco straight X2 Pinout 50 to 230,400bps, Provides direct connection to device console ports, no adapters needed
• 2 x USB 3.0 host ports, Can be used for external storage or to manage device console ports
• Remote Access Dual Ethernet, aggregation & redundancy, automatic network failover, easy web browser UI IPv6
• All appliances ship with two C14 power cables standard

Product Specifications

Overview

• 48 x RS-232 Serial Ports - RJ45 RS-232 Cisco straight X2 pinout - 50 to 230,400bps, Provides direct connection to device console ports, no adapters needed
• Dual LAN ports for main and secondary networks (2 x 10/100/1000 Ethernet port with 1500V AC Isolation and ESD Protection)
• Secondary LAN for redundancy, management network, out-of-band link, Internet or WAN
• Dual USB 3.0 host ports for peripherals, to manage device console ports, and/or additional storage
• Dual internal universal 100-240V AC power supplies (IEC C14) with dual ON/OFF switches

Power

• Dual AC Dual socket universal IEC C14 inlet 100-240V AC
• Power Consumption Less than 15 W (51 BTU/h) typical

Dimensions and Weight

• 17 x 9.25x 1.75 in (44 x 23.5 x 4.4 cm)
• 9.5 lbs (4.5 kg)
• 1RU with rack mounts

Environmental

• Ambient operating temperature: 41°F to 122°F (5°C to 50°C)
• Storage temperature: -20°F to +140°F (-30°C to +60°C)
• Humidity: 5% to 90%

Emissions

• FCC Part 15 Subpart B:2021 Class A, ICES-003 Issue 7, AS/NZS CISPR 32:2015, EN 55035:2017, EN 55032:2017, VCCI-CISPR 32:2016, CNS 13438:2006-6

Immunity

• EN 61000-3-2-2019, IEC 61000-3-2:2018, EN/IEC 61000-3-3:2013, EN 61000-4-2:2009, IEC 61000-4-2:2008, EN 61000-4-3:2006:+ A1:2008 + A2:2010, IEC 61000-4-3:2006 + A1:2007 + A2:2010, EN/IEC 61000-4-4:2012, IEC 61000-4-8:2009, EN/IEC 61000-4-11:2004

Other Approvals

• CE, IEC 60950, IEC 62368, RoHS compliant.

Memory & CPU

• 1.6 GHz Dual-Core ARM Cortex-A9 SoC (Marvell 88F6820)
• 2GB DDR4 SDRAM
• 32GB eMMC

MTBF

• 150,000 Hours

Security & Authentication

• AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, with local fallback, Embedded Firewall, IPSec and OpenVPN, Trusted Platform Module 2.0

Automation & Scalability

• Opengear, API access, Docker support, Python, Perl and bash support, ZTP, SNMP-Standard MIBs

OpenGear CM8148 Package contents

• Console Server CM8148
• Rack Mount Kit (Part# 590037)
• Two rack ears with six M4 screws
• Four M5mm caged nuts
• Four M5x15mm rack screws
• One CAT5 Patch Cable 5'
• One DB9F-RJ45 rollover serial adapter (Part# 319018)
• Two A/C Power cables
• Quick Start Guide
• Lighthouse insert

UPC 843295106695
EAN 0843295106695
