Rose CrystalView Mini USB CAT5 Extender

CRK-M2U2V

$799.00$745.73
Save $53.27
FREE Shipping on orders over $100

The Rose CrystalView CRK-M2U2V is a mini USB dual local, dual video CAT5 KVM extender kit.  This system consists of two units, a Local Unit and a Remote unit. The Local unit connects to your CPU using a CPU adapter cable or a KVM switch. The Remote Unit connects directly to the keyboard, video monitor and mouse cables of a KVM station. The Local and Remote Units are connected together with up to 150 feet of industry standard CATx cable.  The CRK-M2U2V CrystalView Mini uses a microprocessor to emulate the keyboard and mouse for plug and play operation.  The keyboard and mouse on the Remote Unit do not need to be connected for the PC to boot; only the Local Unit must be connected to the PC.

The Rose CrystalView Mini is also available in the following models:

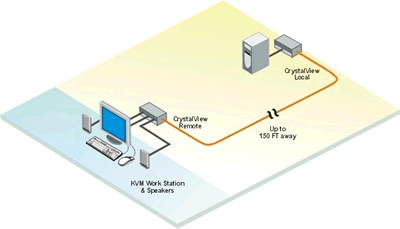

Rose CrystalView CRK-M2U2V Application Diagram

Rose CrystalView CRK-M2U2V Application Diagram

Rose CRK-M2U2V Features & Benefits:

  • Supports:
    • VGA to UXGA video modes
    • USB keyboards and mice
    • USB peripherals
  • Extend a KVM station up to 150 feet away from a CPU using CATx* cable
  • Video resolutions up to 1600 x 1200 @75Hz
  • Works with any Operating System
  • Fully automatic KVM sharing
  • DDC support
  • Rackmount kits available

* CATx cable = CAT5, CAT5e, CAT6, or higher

Rose CRK-M2U2V Specifications:

Mechanical
Height 1.70 in. (44 mm.)
Width 5.90 in. (150 mm.)
Depth 4.30 in. (110 mm.)
Weight 0.55 lb. (250 gm.)
Environmental
Temperature 32°F - 113°F (0°C - 45°C)
Humidity 0% - 80% non-condensing
Video
Resolution 1600 x 1200 @ 150 feet
Compatibility SVGA, VGA, XGA, RGB
Levels 0.7V p-p
Sync type Separate/composite TTL level
Support
Keyboard USB
Mouse USB
Connectors
Video HD15F
USB local USB B
USB remote 4 port USB A hub
Interconnect CAT5 UTP/STP, EIA/TIA 568
Power
Local From PC
Remote 5V, 20W external
Approvals CE
