ATEN CS1308KIT 8-Port USB/PS2 KVM w/ 8 USB KVM Cables


Save $93.99
FREE Shipping on orders over $100

The ATEN CS1308KIT KVM Switch bundle includes 8 USB style cables and allows direct access and control for 8 computers from a single console (keyboard, mouse, and monitor). Additionally, as many as 8 additional switches can be cascaded, bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The Aten CS1380KIT KVM Switch supports both USB and PS/2 connections for the console and computers.

ATEN CS1308KIT Features:

  • One USB-PS/2 console controls 8 computers
  • Cascade up to 2 levels - control up to 64 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • 8 x USB KVM cables included!

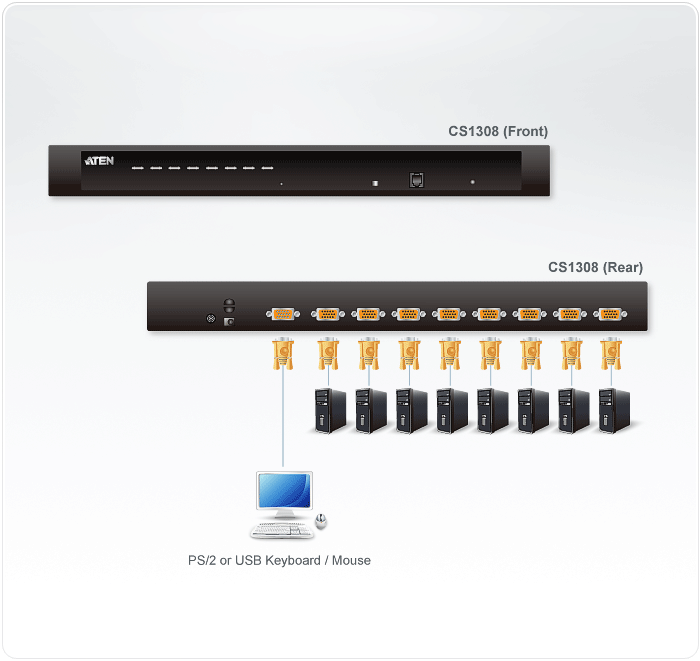

Aten CS1308KIT Diagram
Aten 8-Port USB/PS2 KVM Switch Diagram
(Aten CS1308 depicted here)

Aten CS1308KIT Requirements:

  • Console
    • A VGA, SVGA, or Multisync Monitor
    • USB or PS/2 keyboard and mouse
  • Computers
    • a VGA, SVGA, or Multisync graphics card with HDB-15 port
    • PS/2 Mouse and Keyboard ports, or at least one USB port

Aten CS1308KIT Package Content:

  • 1 CS-1308 KVM Switch with Rack Mount Kit
  • 2x 2L5201U - 4 foot Micro-lite USB KVM cables
  • 4x 2L5202U - 6 foot Micro-lite USB KVM cables
  • 2x 2L5203U - 10 foot Micro-lite USB KVM cables
  • 1 Console Cable
  • 1 Firmware Updgrade Cable
  • 1 Foot Pad set (4 pads)
  • 1 Power Adapter
  • 1 User Manual

Aten CS1308KIT Specifications:

Height 1.73 in. (4.40 cm.)
Width 6.3 in. (16.00 cm.)
Depth17.05 in. (43.30 cm.)
Weight4.17 lbs. (1.89 kg.)
Operating Temperature32-122 F (0-50 C)
Storage Temperature

-4-140 F (-20-60 C)


0-80% RH, Non-condensing

KVM2 (Green)
Port SelectionOSD, Hotkey, Pushbutton
Video Resolution2048 x 1536; DDC2B
Power ConsumptionDC 5.3V, 5W
Scan Interval1-255 Seconds
Supported Hardware
EmulationUSB, PS/2 keyboard/mouse
Keyboard, Mouse & Monitor1 x SPHD-15
KVM Ports8 x SPHD-15
Firmware Upgrade1 x RJ11
Power1 x DC Jack
Approved Agency RoHS

The CS1308KIT is one replacement option for the ACS1208A and ACS1208.

UPC / EAN Barcode icon
UPC 672792503320
EAN 0672792503320
