The ATEN CS62A 2-Port KVM Switch has a handy design integrating 4 feet of cables. This ATEN KVM Switch can control 2 servers via a single console.
ATEN CS62A Features:
- One PS/2 console controls 2 computers
- Compact design, built in 1.2m cables
- All-in-one design
- With speaker support
- Superior video quality - up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- OS Compatibility includes Windows 2000/XP/Vista, LINUX and FreeBSD
CS62A Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: None | Default: [Scroll Lock] [Scroll Lock] | Default: None |
| Alternate: None | Alternate: [Ctrl] [Ctrl] | Alternate: None |

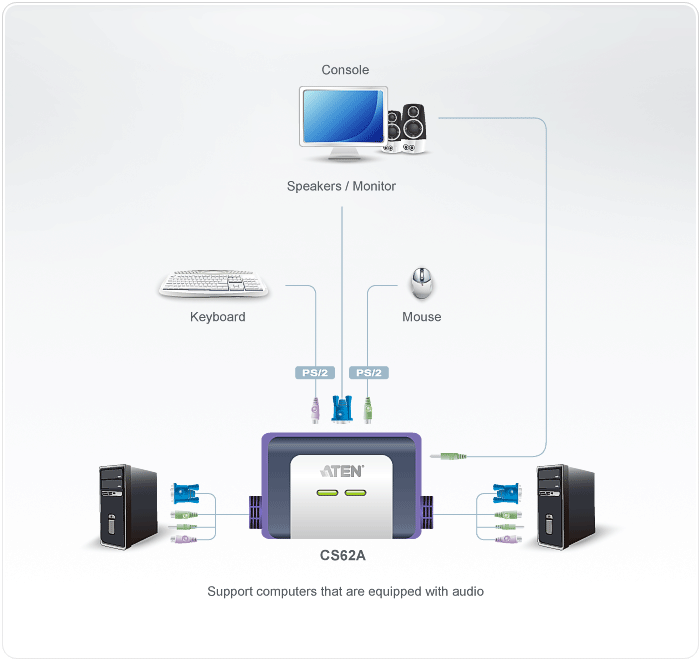

Aten CS62A Diagram
Aten CS62A Requirements:
- Console
- A VGA, SVGA, or multisync monitor
- PS/2 keyboard and mouse
- Computers
- VGA, SVGA, or Multisync capable video port
- 6-pin Mini-DIN (PS/2) keyboard & mouse ports
Aten CS62A Package Content:
- 1 CS-62A PS/2 KVM Switch with Attached Cables
- 1 User Manual
Aten CS62A Specifications:
| Mechanical | Unit | |
| Height | 0.98 in. (2.5 cm.) | |
| Width | 1.95 in. (4.95 cm.) | |
| Depth | 4.72 in. (12 cm.) | |
| Weight | 0.90 lbs. (.41 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| Selected | 2 (Green) | |
| Port Selection | Hotkey | |
| Video Resolution | 2048x1536; DDC2B | |
| Scan Interval | 3, 5, 10, 20 seconds | |
| Supported Hardware | ||
| Emulation | PS/2 Keyboard/Mouse | |
| Keyboard, Mouse & Monitor | 2 x 6-pin Mini-DIN 1 x HDB-15 | |
| KVM Ports | 4 x 6-pin Mini-DIN 2 x HDB-15 2 x Mini Stereo Plug | |
| Standards | ||
| Approved Agency | RoHS | |
UPC 672792150654
EAN 0672792150654
Question: Will this cable be compatible with 1 computer running windows8.1 and the 2nd computer running windows7professional. I will only be using one monitor
Answer: Thank you for your inquiry. While this KVM does not explicitly state that it supports Windows 7 or 8.1, it is listed as a Windows 8 compatible product on the manufacturer's website, so it should work. Unfortunately, there are too many different factors to 100% guarantee it will work in any particular user environment.
Question: how can i switch between 2 pc-s (combination of keys)
Answer: Thank you for your inquiry.
It is not real clear from the manual, but we believe you can use the following sequence for hot key switching, [Scroll Lock] [Scroll Lock] - hit the scroll lock key twice on rapid succession. If the default hotkey sequence has been changed, you may need to use the alternative sequence which is [Ctrl] [Ctrl].
Answer: Thank you for your inquiry. While this KVM does not explicitly state that it supports Windows 7 or 8.1, it is listed as a Windows 8 compatible product on the manufacturer's website, so it should work. Unfortunately, there are too many different factors to 100% guarantee it will work in any particular user environment.
Question: how can i switch between 2 pc-s (combination of keys)
Answer: Thank you for your inquiry.
It is not real clear from the manual, but we believe you can use the following sequence for hot key switching, [Scroll Lock] [Scroll Lock] - hit the scroll lock key twice on rapid succession. If the default hotkey sequence has been changed, you may need to use the alternative sequence which is [Ctrl] [Ctrl].
