ATEN CS62S 2-Port PS/2 KVM Switch
CS62S
$34.00
The CS62S KVM Switch is a control unit that allows access to two computer systems from a single console (keyboard, monitor, and mouse). The CS62S improves on the design of previous models with a 50% smaller desktop footprint for a neat and tidy workspace. Plus, the attached custom KVM cables ensures the installation is hassle-free.
Setup is fast and easy; just plug the cables into their appropriate ports and start using the device. There is no software to configure, no installation routines, and no incompatibility problems.
ATEN CS62S Features:
- One PS/2 console controls 2 PS/2 computers
- Compact design, built in 0.9m cables
- All-in-one design
- Superior video quality - up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- OS Compatibility includes Windows, LINUX and FreeBSD
CS62S Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: None | Default: [Scroll Lock] [Scroll Lock] | Default: None |
| Alternate: None | Alternate: [Ctrl] [Ctrl] | Alternate: None |

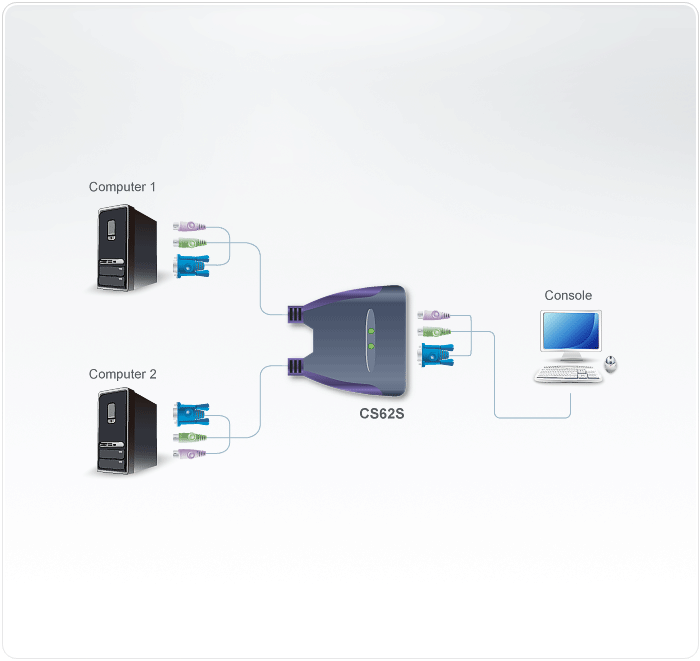

Aten CS62S Diagram
Aten CS62S Requirements:
- Console
- A VGA, SVGA, or multisync monitor
- PS/2 keyboard and mouse
- Computers
- VGA, SVGA, or Multisync capable video port
- 6-pin Mini-DIN (PS/2) keyboard & mouse ports
Aten CS62S Package Content:
- 1 CS-62S PS/2 KVM Switch with Attached Cables
- 1 User Manual
Aten CS62S Specifications:
| Mechanical | Unit | |
| Height | 0.89 in. (2.25 cm.) | |
| Width | 2.30 in. (5.85 cm.) | |
| Depth | 2.87 in. (7.30 cm.) | |
| Weight | 0.73 lbs. (.33 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| Selected | 2 (Green) | |
| Port Selection | Hotkey | |
| Video Resolution | 2048x1536; DDC2B | |
| Scan Interval | 3, 5, 10, 20 seconds | |
| Supported Hardware | ||
| Emulation | PS/2 Keyboard/Mouse | |
| Keyboard, Mouse & Monitor | 2 x 6-pin Mini-DIN 1 x HDB-15 | |
| KVM Ports | 4 x 6-pin Mini-DIN 2 x HDB-15 | |
| Standards | ||
| Approved Agency | RoHS | |
UPC 672792125553
EAN 0672792125553
