ATEN Master View CS72EC 2-Port PS/2 KVM Switch
CS72EC
The ATEN CS72EC PS/2 KVM Switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). With its custom designed connectors, the number of ports required for a 2 port KVM switch is drastically reduced. The design features a custom SPHD-15 male connector for the keyboard, video, and mouse, and SPHD-15 female connectors for the cables that connect the switch to the computers.
ATEN CS72EC Features:
- One PS/2 console controls 2 computers
- Compact, modern case for convenient attractive placement
- Custom connector layout
- Power on detection - automatically switches to the first powered on port
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Supports Microsoft IntelliMouse and the scrolling wheel on most mice
- Auto Scan function to monitor computer operation
- Non-powered
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD
CS72E Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: None | Default: [Scroll Lock] [Scroll Lock] | Default: None |
| Alternate: None | Alternate: None | Alternate: None |

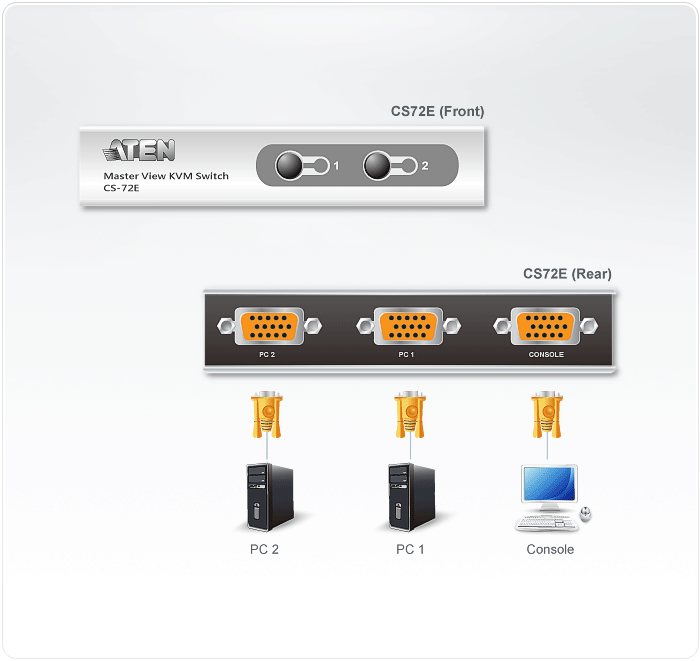

Aten CS72EC Diagram
(CS72E depicted here)
Aten CS72EC Requirements:
- Console
- A VGA, SVGA, or multisync monitor
- PS/2 keyboard and mouse
- Computers
- VGA, SVGA, or Multisync capable video port
- PS/2 keyboard and mouse port
Aten CS72EC Package Content:
- 1 CS-72EC PS/2 KVM Switch
- 1 Console Connector Cable
- 2 Custom KVM Cables
- User Manual
Aten CS72EC Specifications:
| Mechanical | Unit | |
| Height | .98 in. (2.49 cm.) | |
| Width | 3.14 in. (7.98 cm.) | |
| Depth | 5 in. (12.7 cm.) | |
| Weight | 0.7 lbs. (.318 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| Selected | 2 (Green) | |
| Port Selection | Hotkey, Pushbutton | |
| Video Resolution | 2048x1536; DDC2B | |
| Scan Interval | 5 seconds | |
| Supported Hardware | ||
| Keyboard, Mouse & Monitor | 2 x VGA Connector | |
| KVM Ports | 1 x SPHD-15 | |
| Standards | ||
| Approved Agency | RoHS | |
UPC 672792151415
EAN 0672792151415
