ATEN CS84U 4-Port PS/2-USB KVM Switch w/ Cables

CS84U

$135.00$108.36
Save $26.64
FREE Shipping on orders over $100

The ATEN CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, the CS84U KVM comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution.

Setup for the ATEN CS84U is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the ATEN CS84U KVM Switch intercepts keyboard input directly, it will work on multiple computing platforms.

ATEN CS84U KVM Features:

  • One PS/2-USB VGA console controls four VGA interface computers.
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Superior video quality - 2048 x 1536; DDC2B
  • Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping - supports English, Japanese, and French keyboards
  • Gaming keyboard support
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
  • Non-powered

1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers

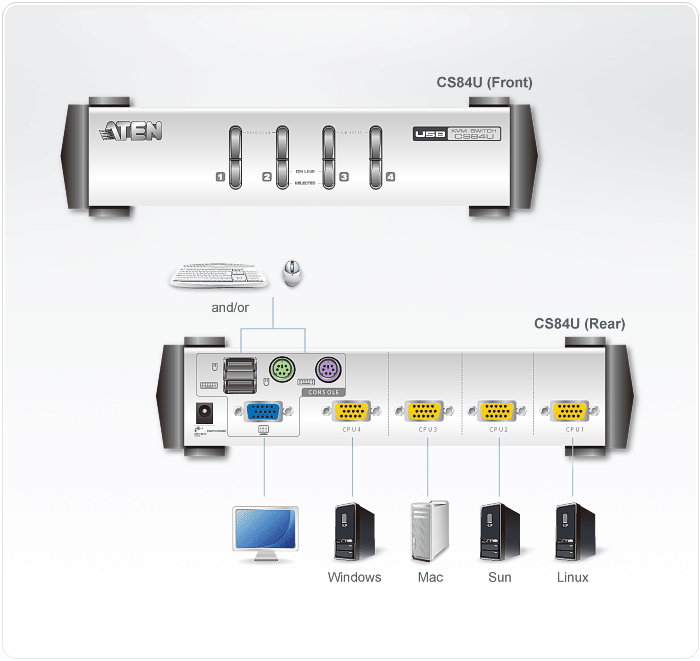

Aten CS84U Diagram
ATEN 4-port PS/2-USB KVM Switch
(ATEN CS84U depicted here)

Aten CS84U Requirements:

  • Console
    • A VGA compatible monitor
    • USB or PS/2 keyboard and mouse
  • Computers
    • A VGA port
    • Type A USB ports or 6-pin Mini-DIN (PS/2) ports

Aten CS84U Package Content:

  • 1 CS-84U 4-port PS/2-USB KVM Switch
  • 4 Custom KVM Cable sets
  • 1 User Manual

Aten CS84U Specifications:

MechanicalUnit
Height2.17 in. (5.5 cm.)
Width 3.43 in. (8.7 cm.)
Depth8.27 in. (21.0 cm.)
Weight1.70 lbs. (0.77 kg.)
Environmental
Operating Temperature32-122 F (0-50 C)
Storage Temperature

-4-140 F (-20-60 C)

Humidity

0-80% RH, Non-condensing

LEDs
On Line4 (Orange)
Selected4 (Green)
Port SelectionFront Panel Pushbuttons,
Hotkey, USB Mouse
Video2048 x 1536 @ 60 Hz; DDC2B
Power ConsumptionDC 5V, 1.2W
Scan Interval5 seconds default (3, 5, 10, 20 secs.)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor2 x USB Type A
2 x 6-pin Mini-DIN (PS/2)
1 x HDB-15
KVM Ports4 x SPHD-18
Power1 x DC Jack
USB 2.0 Hub2 x USB Type A
Standards
Approved Agency RoHS
UPC / EAN Barcode icon
UPC 672792800146
EAN 0672792800146
Question: The pkg content says that it comes with 4 custom KVM cable sets. are thos USB or PS2?
Answer: Thank you for your inquiry. we believe the cables are PS/2-USB combo cables, so should work for either type of connection.

Question: What is non-powered, do we not need to use dc jack?
Answer: Thank you for your inquiry. Yes that is correct, this device does not require a DC power jack as ling as the USB bus provides enough power for the switch.

There is an optional jack for an optional DC power supply (sold separately)

Question: can it monitor 4 computer in same screen ?
Answer: Thank you for your inquiry. Unfortunately, no this KVM switch will not allow for all four connected systems to be displayed on one screen.

To view several systems on one screen, you may be interested in checking out our Multiviewer selection here: https://www.kvm-switches-online.com/multiviewer.html

Product Reviews

5 out of 5, Based on 1 Reviews.
Write a Review
Works great
Boulder
October 16, 2013

Have used this switch since last Fall and have no complaints. Sturdy construction, easy to use.
