Aten 4 PORT KVM Plus W/OSD W/ 120V

CS9134

$199.95

Discontinued
Recommended replacement: ATEN CS1754
Alternative options: Contact Us

CS9134 Hot Key Sequence

Hotkey Mode
(Invoke Hotkeys)
Port SelectionInvoke OSD
Default: [Ctrl] + [Shift] + [Alt]Default: [Ctrl] + [Shift] + [Alt] Release [Port Number] [Enter]Default: [Scroll Lock] [Scroll Lock]
Alternate: NoneAlternate: NoneAlternate: [Ctrl] [Ctrl]

ATEN 4-Port MasterView KVM Switch (CS9134) w/OSD - Legacy
Your business is growing faster than you expected and four computers simply aren't enough to meet your needs. Not a problem! ATEN's four-port MasterView Plus (CS9134) is just the tool you need to help eliminate redundant monitors, mice and keyboards. The MasterView Plus enables you to control up to 64 computers with a single keyboard, monitor and mouse. The ATEN MasterView Plus (CS9134) is much more than a simple four-port KVM switch. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while our On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the ATEN MasterView Plus (CS9134) is the perfect switch for your server room or any other multi-computer environment.

ATEN 4-Port MasterView KVM Switch (CS9134) Features:
Cascadable to three levels - Control up to 64 PCs from a single console No software required - PC selection via front panel switches, Hot Keys, or OSD (On Screen Display) Quick View Scan feature for monitoring selected PCs PS/2 and serial mouse emulation provided for system bootup Console's PS/2 mouse controls all connected PCs - even those with serial mice Microsoft Intellimouse Pro, Logitech FirstMouse, MouseMan, IBM Scrollpoint Mouse support SVGA, VGA and Multisync monitor support Superior video quality; 1920x1440; DDC2B LED display for easy status monitoring Supports high quality CS series custom connector cables Rack mountable in 19" system rack Hot Pluggable - add or remove PCs for maintenance without powering down the switch

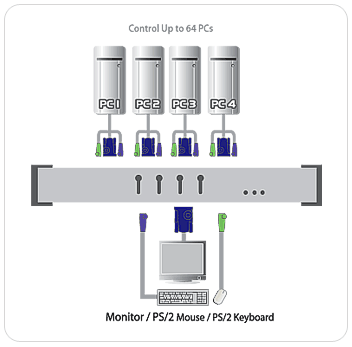

CS9134 Function Diagram
ATEN 4-Port MasterView KVM Switch (CS9134) Function Diagram

ATEN 4-Port MasterView KVM Switch (CS9134) Specifications:

Case
Width 15.5 in. (39.37 cm.)
Height 10.25 in. (26.035 cm.)
Length 22.5 in. (57.15 cm.)
Case Qty. 3
Computer Connections
Direct 4
Daisy Chain or Cascading 64
Emulation
Mouse PS/2, Serial
Keyboard PS/2, AT
LEDs
On Line 4
Power On 1
Selected 4
Console Connectors
Monitor 1xHDDB15 Female
Mouse 1x6 pin mini-DIN Female (PS/2)
Keyboard 1x6 pin mini-DIN Female (PS/2)
Power
Voltage DC 9V
Housing
Case Metal
Weight
Case Wt. 26 lbs. (11.70 kg.)
Dimensions
Width 19.3 in. (49.02 cm.)
Length 6 in. (15.24 cm.)
Height 1.75 in. (4.445 cm.)
CPU Connectors
Mouse 4x6 pin mini-DIN Female (PS/2)
Keyboard 4x6 pin mini-DIN Female (PS/2)
Monitor 4xHDDB15 Male
Port Selection Push Buttons, Hot Keys, or OSD
Power Consumption 900 W (Max)
Video Resolution 1920x1440; DDC2B
Scan Interval 3, 5, 10, 15, 20, 30, 40, 60 seconds
