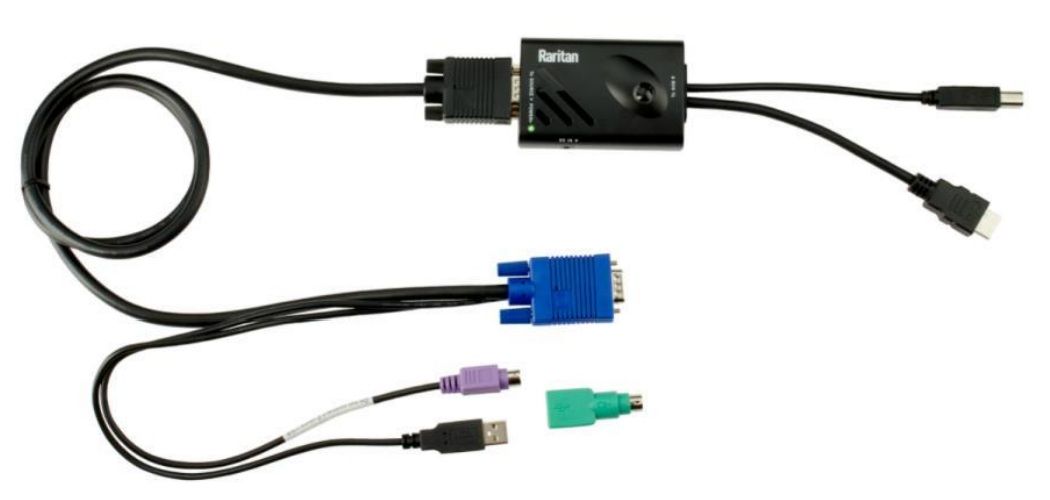

VGA and USB/PS2 to HDMI and USB KVM Converter
D4CBL-ADUPS2
Save $16.12
Model: VGA/PS2 or USB to HDMI/USB

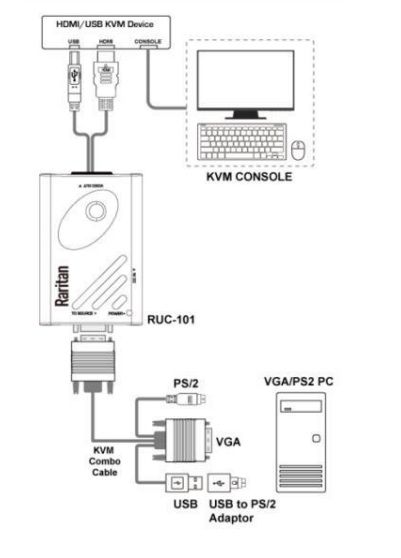

The D4CBL-ADUPS2 features a video signal conversion from an HD VGA video signal to an HDMI video signal and a signal transmission between an USB or a PS2 keyboard/mouse port on a PC and an USB HID keyboard/mouse connected to a KVM device. This product is specially designed for legacy devices or PCs which connect to novel console devices while providing an excellent compatibility solution for cascading PCs and KVM devices.
D4CBL-ADUPS2 Features
- Convert VGA video to a HDMI video signal
- VGA/HDMI/USB plug and play; no required software or drivers
- HDMI 1.3 specifications complaint
- USB HID Emulation Technology with an integrated microcontroller
- Supports Relative mode mouse transmission
- USB 3.0/ USB 2.0/ USB1.1 Specification compliant
- Supports up to a 1920x1200 resolution at 60Hz
- Supports Windows XP/7/10, Linux and Mac OS
- Firmware upgradeable via USB port
D4CBL-ADUPS2 Specifications
| VGA Socket | 1 x HDB15 Female (VGA/USB/PS2 Combo) |
| Console Keyboard/Mouse Connector | 1 x USB Type-B Male |
| Console Monitor Connector | 1 x HDMI Male |
| Accessories Attached | 1 x VGA/USB/PS2 1.2M Combo Cable 1 x USB-to-PS2 Adapter |
| Power Port LED | 1 (Green) |
| Digital Display Resolution | 1920x1200p @60HZ |
| Keyboard & Mouse Emulation | Yes |
| Video EDID Emulation | Yes |
| Power Adapter | DC 5V/1A (Optional) |
| Safety / Emission | FCC, CE Certified |
