The Dataprobe iPIO-8 (SKU 1340070) is a network attached, IP addressed digital input and output device. The iPIO-8 can be controlled and monitored with a standard web browser. Multiple ipIO-8 devices can communicate amongst themselves to transport I/O information across the network. Highly flexible telemetry systems can be developed with these simple devices.
Simple Web Browser Control and Monitoring
The Status and Control web page provides real time status of the inputs, outputs and remote iPIO unit connections. The top of the page indicates the location reference, which is user settable.
Each input, output and remote device is defined by a user selectable name. Inputs and outputs can also be assigned names for Open and Closed statuses, as well as background and text colors for each. All configurations are accomplished via the setup tab at the top of the screen.
If the iPIO-8 is programmed to communicate with additional units, each remote unit will be displayed at the bottom of the page. Each remote site displays red or green, indicating connection status.
Dataprobe iPIO-8 Features
- Web Browser Relay Control
- Ethernet I/O
- Transport GPIO over the Network
- Contact Closure via IP
- SSL and AES Encryption
- 8 Form C Relays
- 8 Digital Inputs - Wet or Dry
- One Input to Many Outputs
- Many Inputs to One Output
- Any to Any - Many to Many
Dataprobe iPIO-8 Applications
iPIO-8 is simple to install and easy to use, but enables you to develop highly flexible telemetry systems.
iPIO - Transport I/O Events Over IP
Bidirectional GPIO Event Transport

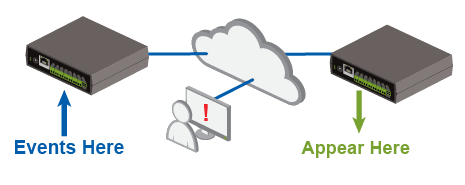

iPIO-8 gives you the ability to transport digital I/O across Ethernet networks with IP protocols. Multiple iPIO devices can communicate amongst themselves to transport I/O information across your network, and links are bidirectional, so events in either location are reflected at any other site. Any changes in status appear at the other end of the network as relay outputs. 2 Units are required for End-to-End transport. Contact us for a discount on paired units.
Monitor & Control iPIO Over the Network
Get real time status updates on you web browser and click to control any iPIO relay. Monitor and control digital I/O worldwide using an SNMP V2 compliant manager. iPIO can also send emails when events occur.
iPIO - Multi Site Event Reporting
One digital input can trigger relay controls at multiple remote locations. With iPIO, one alarm can trigger events throughout your network, making it easy to respond to physical events and manage your systems remotely:
- Climate Control
- Industrial Control
- Security Alerts
- Firehouse Doors
- Irrigation Systems
iPIO - Consolidate Events Across Sites
Events from multiple locations can also be consolidated to a central alarm point. Digital inputs from any iPIO unit can be mapped to the relay output of any other, giving you maximum control:
- Environmental Alarm Summaries
- Storm Warning Systems
- Security Alerts
- Pump Controls
iPIO-8 Package Contents
- (1) iPIO-8
- (1) 6ft Cat5 Network Cable
- (1) AC Power Supply
- (1) Quick-Start Guide
- (1) 3-Year Warranty
Dataprobe iPIO-8 Specifications
|Height||1.75 in. (4.5 cm.)|
|Width||5.25 in. (13.3 cm.)|
|Depth||5.5 in. (14.0 cm.)|
|Temperature||0 - 70 Deg C Operating|
|Humidity||90 Pct Non Condensing|
|Power||Wall Mounted Power Supply, 105 - 240 VAC 50/60Hz or +5VDC direct. |
Power supply with universal plug options.
|Connections||2 Terminal per Input. (common ground) |
Three Terminal per Relay Output (Form C)
|LED Indictors||8 x Input. |
8 x Output.
Network Link and Activity.
Remote Unit Link Status.
|Inputs||8 Digital Inputs. |
Dry relay/switch closures or
+/-3VDC to +/-30 VDC
|Current Maximums||0.5A @ 120VAC or 1A @ 24VDC|
|Switching Power||60VA Max 50uW Min|
|Switching Voltage||120VAC or 60VDC Max 1VDC Min|
|Switching Current||2A Max 1mA Min|
|Resistance||100 milliohms (initial value)|
|Operations||5 Million, mechanical. 100K at maximum load|
|Network||HTTP Web Server |
SSL Security - Optional
AES Encryption on Inter-device communication - Optional
DHCP Assigned or Static IP Address
Port Selectable for http, https and Inter-device communications
Inter Device Communications via TCP/IP Protocol, supplied.
The Dataprobe iPIO-8 is also known as Dataprobe 1340070.
Answer: Thank you for your patience. Here is the response we received from our Dataprobe contact:
The latest revision of the ipio8 code (1.21.105) does support momentary as well as a pulse. The setup for it is in the remote setup section of the current manual on page 9. (We have uploaded the manual for your convenience)
Each local input on the iPIO-8 can be used to activate one relay on remote iPIO-8 units. Program the Remote Relay section by selecting which remote relay will be controlled by each input. Select the relay number on the remote unit that will be controlled. The On Open and On Close setting allow the user to define the action that the remote relay will take when the input is open or closed. The choices are Open, Close or Pulse - Open and Pulse - Close. If Pulse - Open or Close is selected, the relay will momentarily take the state chosen (open or closed) for the duration specified in the Pulse column.
So, you could program input 1 for "on close" to close relay 1. Then when with a momentary close on the input, the relay will close. Program input 1 "on open" to none so that when the input opens, relay one will stay closed. You will need another method to open the relay back up, as there is no toggle option. You could program input 2 "on close" to open relay 1 as a clear, or use the webpage to clear the relay, or even the DxP protocol and create a shortcut on a desktop to clear the relay. You could even use the input 1 "on close" pulse close with a delay, so the relay will clear itself after that delay.
As for the light, we are closing a relay, and an LED on the unit will indicate the closure, but you will have to make the relay control a light. LED or low current kind of thing.
There will be new code available for the iBoot-G2+ in a month or so that will allow a contact closure to toggle an AC outlet.
Question: Hello, i need an external power supply to use IPIO 8?
Answer: Thank you for your inquiry,
Dataprobe p/n PS-WRI-6 would be the external replacement power supply for the Dataprobe iPIO-8.
Please let us know if would like a quote, or if there is anything else we can help you with!
