Raritan Dominion SX8 8-Port Console Server

DSX8

$1,495.00

Discontinued
Replaced by: Raritan DSX2-8M
Alternative options: Contact Us

The Raritan Dominion DSX8 is a single-feed AC power, 8-port secure console server with 2 console ports. The DSX8 console server provides remote access to serially managed servers and other network devices anytime and anywhere via any Web browser. Up to 8 devices-including servers, routers, switches, VPNs and power strips-can be accessed and controlled via Dominion SX8. It is scalable for hundreds of users and thousands of devices. It's easy to install simple to use, secure and scalable.

With the Raritan DSX8, you get one point of control to manage users, serial servers and other IT devices including:

  • Servers & Headless Servers: Sun Solaris, Sun Cobalt, HP-UX, UNIX, Linux Servers, IBM/AIX Servers, Windows 2003 Servers
  • WAN Equipment: ISDN Terminal Adapters, Channel Banks, CSU/DSU, PBS/PABX
  • Networking Equipment: Routers, Ethernet Switches, Ethernet Firewalls, Ethernet Load Balancers
  • Power Control: All serially controlled power strips and UPS

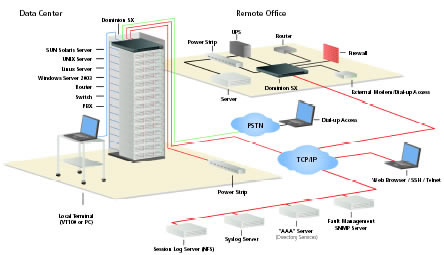

Raritan Dominion SX Installation Diagram
Raritan Dominion SX Installation Diagram

Raritan Dominion SX Features and Benefits:

  • Intelligent auto-failover on dual-LAN models
  • Single appliance - No additional software
  • Access via web browser/SSHv2/Telnet
  • 256KB port buffer
  • Standard built-in modem
  • RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
  • Local console port for at the rack access
  • Secure appliance - user has no access to operating system
  • Local and remote buffering/logging
  • Broadest range of supported browsers: IE, Firefox, IE
  • SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
  • Dynamically resizable VT100 windows with dynamic font-resizing
  • Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
  • HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
  • Full modern CLI- GUI equivalence
  • IPMI support- Allows for discovery and management of IPMI enabled servers
  • Port keyword monitor and alert
  • VT220/320/ANSI Support
  • NFS logging
  • Single IP Address for administration and target connection

DSX Security & Authentication:

  • Fully featured firewall
  • Man In The Middle (MITM) attack mitigation
  • TCP port addressing for Telnet and SSHv2
  • Local user groups
  • Flexible strong password support
  • Customizable login & consent banner
  • Enhanced encryption options
  • Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
  • Primary and secondary servers are supported
  • User defined and installable security certificates
  • Target server disconnection option
  • Disabling authentication and authorization
  • Disable local authentication option
  • SSL with RC4 encryption
  • User ID and Password

Raritan DSX8 Specifications:

Mechanical
Height 1.75 in. (44 mm.)
Width 11.34 in. (288 mm.)
Depth 10.7 in. (270 mm.)
Form factor 1U, rack mountable (brackets not included)
Weight 4.81 lbs. (2.17 kg.)
Ports
Serial ports 8
Environmental
Operating Temperature 32°F (0°C) to 104°F (40°C)
Humidity 20% - 85% RH non-condensing
Altitude Operates properly at any altitude between 0 to 10,000 feet
Power 110/220V auto-switching: 50-60 Hz; 36-72V DC
Remote Connection
Network 10/100 Ethernet (RJ45) port - one or two
Protocols TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP
Modem Connectivity Dedicated Modem Port
Approvals CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A
UPC / EAN Barcode icon
UPC 785813603012
EAN 0785813603012
