DVI-D CAT6 STP Extender with Reclocking, Transmitter only

DVX-TX200-PROS

$250.00$194.81
Save $55.19
FREE Shipping on orders over $100
smartavi_madeinusa

The DVX-TX200-Pro is the perfect solution for extending a DVI-D display to a remote location up to 250 feet away. The DVX-200-Pro features pixel accurate signal reclocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning.
*Transmitter only.

Applications

  • Call Centers(co-locate user's computers)
  • Industrial (protection against pollution)
  • Information Terminals & Kiosks.
  • Airports (air traffic control, passenger information systems).
  • Medical - using computer tomographs generates strong magnetic fields, which make it impossible to use monitors.

transmitter

Features

  • Supports DVI-D single-link sources
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Dedicated switch to learn any DDC
  • Full reclocking for the receiver regenerates digital signal producing top signal quality
  • Extends up to 250ft (275ft with high quality CAT6 STP)
  • Supports Mac, PC, and Linux DVI
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Compatible with all major KVM switches
  • Data recovery for digital video
  • Plug-and-play

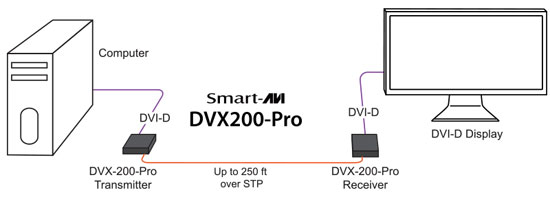

diagram

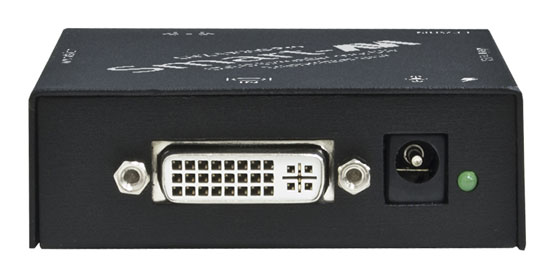

SmartAVI DVX-200-Pro Transmitter

Mechanical
Height 1 in. (2.54 cm)
Width 3.68 in. (9.34 cm.)
Depth3 in. (7.62 cm.)
Weight0.20 lbs.
Video FormatDVI-D Single Link
Max Video Pixel Clock165 MHz
Video Input Interface(1) DVI-D 29-pin female
Video Output Interface(1) DVI-D 29-pin female
ResolutionUp to 1920x1200 @ 60Hz
DDC5 volts p-p (TTL)
PowerExternal 5VDA 1A, 2A
UPC / EAN Barcode icon
UPC 813280017497
EAN 0813280017497
