Gefen CAT5 9000 Extender System

EXT-CAT5-9000

$695.00

Discontinued
Recommended replacement: ADDERLink X-USB PRO
Alternative options: Contact Us

The Gefen EXT-CAT5-9000 Extender system extends VGA, PS/2, RS-232 and audio up to 330 feet.

How the Gefen CAT5 9000 Extender works:

The CAT5 9000S sender sits next to your computer. Cables supplied with the CAT5 9000 connect your CPU to the sender. The CAT5 9000R receiver sits next to the monitors, keyboard/mouse, RS232 and audio devices - up to 330 feet away. Monitors, keyboard, mouse, audio and RS232 plug into the back of the receiver. Three CAT-5 extension cables connect the sender and the receiver units to each other.

Note: The CAT59000 does not extend USB. Visit the CAT-5-9000I page for additional USB extension features.

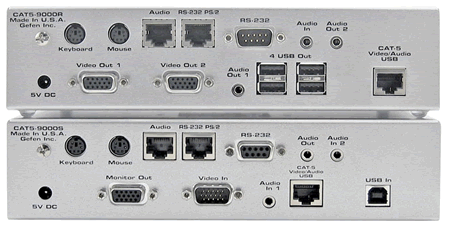

Gefen CAT5 9000 Extender System Backside
Gefen CAT5 9000 Extender System Backside

Gefen EXT-CAT5-9000 Features:

  • Extends any VGA display up to 330 feet (100 meters)
  • Maintains 1920 x 1200 resolution video
  • Extends RS-232, PS/2 and audio in/out devices up to 330 feet
  • Uses three CAT-5e cables
  • Rackmountable

Gefen EXT-CAT5-9000 Package Includes:

  • CAT5 9000S Sender Unit
  • CAT5 9000R Receiver Unit
  • (1) 6ft VGA cables
  • (2) PS/2 (m-m) cables
  • (1) 6ft Audio cable
  • (2) 5 VDC power supply

Gefen EXT-CAT5-9000 Specifications:

Mechanical
Height 2 in. (5 cm.)
Width 8.5 in. (21.6 cm.)
Depth 4 in. (10 cm.)
Shipping Weight 14 lbs. (6 kg.)
Power
Supply 5V DC
Consumption 20 watts
Connectors
Video In HD-15 male
Video Out HD-15 female
Audio Connector mini-phone Stereo 3.5mm
Link Connector RJ-45 Shielded
RS232 Connector DB9
PS/2 Connector 6 pin Mini-DIN
Input Signal
Video 1.2 volts p-p
Sync 5 volts p-p (TTL)
Frequency Range
Horizontal 15 - 70 KHz
Vertical 30 - 170 Hz
Video Amplifier Bandwidth 350 MHz
