Gefen Long Range HDMI, USB Extender Over CAT5

EXT-HDKVM-ELR

$1,132.00$789.77
Save $342.23
FREE Shipping on orders over $100

The Gefen EXT-HDKVM-ELR extends HDMI, KVM (keyboard, video, and mouse), and USB over a distance up to 330 feet (100 meters) using one CAT-5e cable. Hi-Def resolutions up to Ultra HD 4Kx2K (3840 x 2160 @ 30Hz), 1080p Full HD, and 1920 x 1200, and USB 2.0 are supported. The Receiver unit connects to an HDTV display using HDMI and also allows the connection of up to three USB devices, providing access to printers, scanners, cameras, external storage media, Digital Signage, and automated control systems. The EXT-HDKVM-ELR product uses Gefen ELR (Extra Long Range) Technology based on HDBaseT¨, allowing HDMI and USB signals to travel along the same CAT-5e cable, reducing cabling costs in addition to providing easier and more reliable installation.

How It Works:

Place the EXT-HDKVM-ELRS Sender unit next to the computer source and use the included HDMI cable to connect the computer to the Sender unit. Use the supplied USB cable to connect the USB host (source) device to the USB port on the Sender unit. Connect the Receiver unit to an HDTV display with an HDMI cable. Connect the USB devices to the Receiver unit. Use one CAT-5e cable, up to 330 feet (100 meter), to connect the Sender unit to the Receiver unit. Connect the included locking power supplies to the Sender unit and Receiver unit, and then connect both power cords to available electrical outlets.

Note: This product is Ultra HD 4K x 2K compliant.

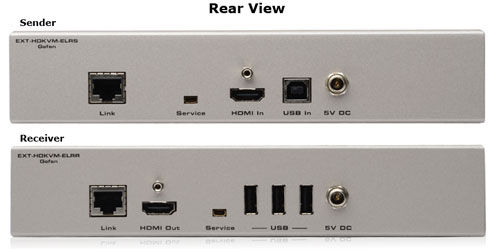

Gefen EXT-HDKVM-ELR Back View
Gefen EXT-HDKVM-ELR Rear View

Gefen EXT-HDKVM-ELR Features:

  • Extends HDMI and USB up to 330 feet (100 meters) over one CAT-5 cable
  • Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080P Full HD
  • Supported HDMI features:
    • HDCP-compliant
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby¨ TrueHD, Dolby Digital¨ Plus, and DTS-HD¨ Master Audioª pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • Supports up to 30 Mbps when using USB 2.0
  • Backward-compatible with USB 1.1
  • EDID management for rapid integration of source and display devices
  • Field-upgradeable via mini USB-port
  • Supports any Operating System
  • ELR and HDBaseT¨ technologies allow extension up to 330 feet (100 meters)
  • Locking power supplies
  • Rack-mountable

Gefen EXT-HDKVM-ELR Diagram
Gefen EXT-HDKVM-ELR HDMI, USB Via CAT5 Extender Diagarm

Gefen EXT-HDKVM-ELR Package Content:

  • 1 EXT-HDKVM-ELR Sender Unit
  • 1 EXT-HDKVM-ELR Receiver Unit
  • 1 6 ft. Locking HDMI Cable (M-M)
  • 1 6 ft. USB Cable (A to B)
  • 2 5V DC Locking Power Supplies
  • 2 AC Power Cords
  • 1 Quick-Start Guide

Gefen EXT-HDKVM-ELR Specifications:

MechanicalUnit
Height1.75 in. (45 mm.)
Width 8.5 in. (216 mm.)
Depth4.5 in. (114 mm.)
Ship Weight6 lbs. (2.7 kg.)
Environmental
Operating Temperature32-104 F (0-40 C)
Sender
Video Input ConnectorHDMI Type A, 19-pin locking
USB Connector1 x Type B, female
Link ConnectorRJ45, shielded
Service ConnectorUSB mini-B
Receiver
Video Output ConnectorHDMI Type A, 19-pin locking
USB Connector3 x Type A, female
Link ConnectorRJ45, shielded
Service ConnectorUSB mini-B
Power
Power Supply5V DC, locking
Power Consumption10 W (max.)

This product is the recommended replacement for the GTB-3DTV-KVM, GTB-3DTV-KVM-BLK, GTB-HDFST-144, GTB-HDKVM-ELR, and GTB-HDKVM-ELR-BLK.

UPC / EAN Barcode icon
UPC 845344056319
EAN 0845344056319
