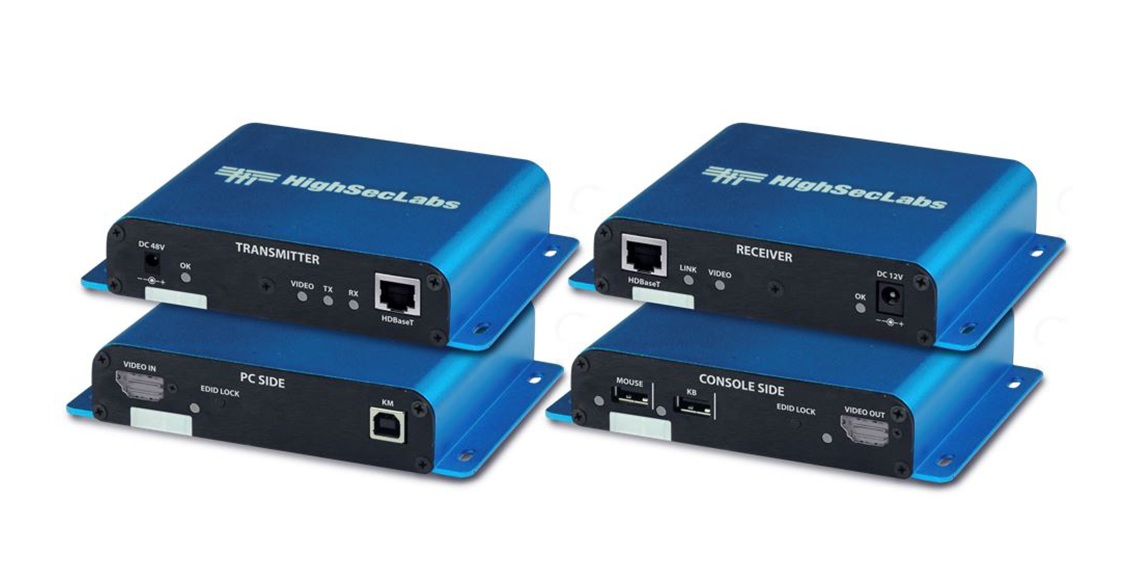

Secure KVM Extender KVM Isolator - NIAP Compliant, DP/HDMI, CATx Style
FICE11PH-M
Save $516.33
Extender Type: Secure Copper Extended KVM Isolator up to 100m
Extend HDMI/DP and USB signals using copper connections wiAthout risk of a a peripheral security breach. HighSecLabs' FICE11PH-M Secure KVM Extender enables filtered, unidirectional, long-distance, and high-speed extension of computer video and keyboard/mouse signals, while preventing vulnerable peripherals from compromising network security.

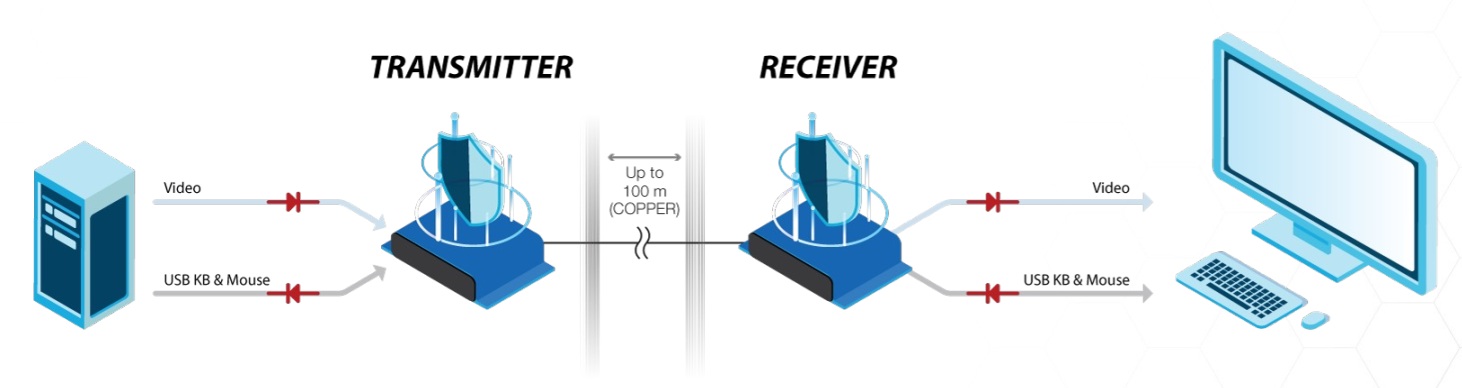

The HSL Secure Extended Isolators remotely transfer not only video and audio, but also the keyboard and mouse. The remote PC can be securely operated from the monitor/projector side. The Keyboard/Mouse USBs are unidirectional, filtered and secure.

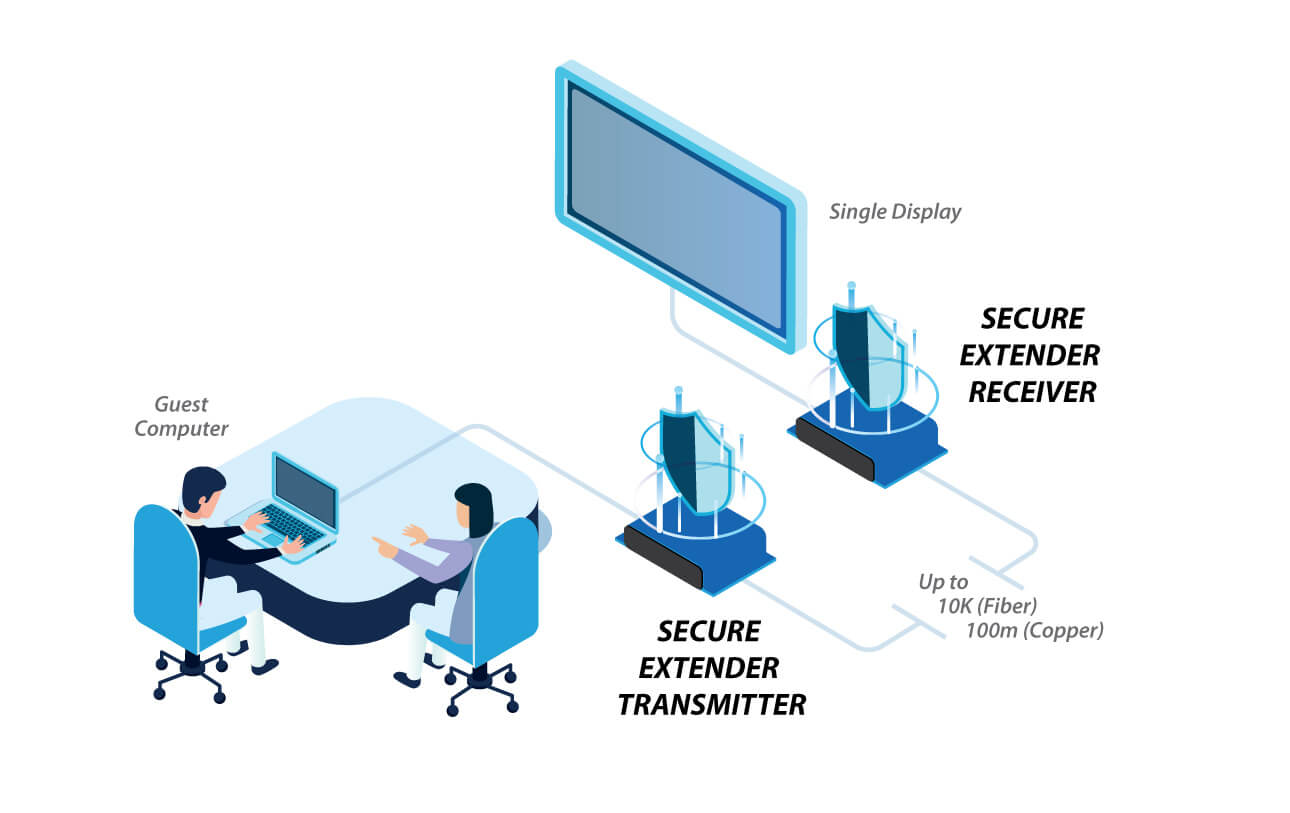

High Sec Labs FICE11PH-M Secure KVM Extender / KVM Isolator Application Diagram
High Sec Labs FICE11PH-M Features
- Secure Architecture: HSL's Secure Extenders are designed using the same architecture as HSL's NIAP Protection Profile 4.0 for Peripheral Sharing Devices (PSD) certified products.
- Long Range: Transmit and receive signals over distances up to 100m depending on the type and quality of CATx Copper cable.
- Zero Latency: High-performance HDBaseT technology provides zero-latency connections between transmitter and receiver units.
- Ultra-HD Video Quality: Extend video signals at UHD 4K resolutions up to 3840x2160 at 30Hz
- DP/HDMI Combo Connectors: HSL's unique combination connectors allow video signals to be sent over both DisplayPort and HDMI cables.
High Sec Labs FICE11PH-M Security Features
Video Security
- Computer video input interfaces are isolated by using different electronic components, power, and ground domains.
- A dedicated, read-only, EDID emulation for each computer isolates the display.
- Access to the monitor's Extended Display Identification Data (EDID) is blocked.
- Access to the Monitor Control Command Set (MCCS commands) is blocked
Keyboard & Mouse Security
- The keyboard and mouse are isolated by a dedicated USB device emulation for each computer.
- Communication from computer to keyboard/mouse is blocked, enforcing unidirectional data flow from peripherals to the computer.
- Non-HID (Human Interface Device) data transactions are blocked.
- Special holographic tampering evident labels on the product's enclosure provide a clear visual indication if the product has been opened or compromised.
TEMPEST certifiable versions available: FIFE11PH-MT
FICE11PH-M Resources
Secure KVM Extender Datasheet (PDF)
Quick Start Guide (PDF)
High Sec Labs FICE11PH-M Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28mm 5.8 x 4.2 x 1.1in (Transmitter/Receiver) |
| Weight | 0.64kg / 1.4lb (Transmitter/Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Extender Features | |
| No. of Sources | 1 |
| Extension Type | Copper |
| Link Port | RJ45 |
| Extension Length | Up to 100m - Depends on the type, quality of the CATx cable. |
| Transmitter Units | |
| Transmitter Model | FICE11PHT-M |
| Video Port | DP/HDMI |
| Max Resolution | UHD 4K up to 3840 x 2160 30Hz |
| Mouse and Keyboard | USB Type B |
| Receiver Units | |
| Receiver Model | FICE11PHR-M |
| Video Port | DP/HDMI |
| Max Resolution | UHD 4K up to 3840 x 2160 30Hz |
| Power Requirements | |
| Power Over Ethernet | Yes |
| Power | Transmitter: 48V Receiver: 12V DC (Optional) |
| AC Input | 100 to 240V AC |
| Power Type | External |
| Certification | |
| Security Accreditation | NIAP PP4.0 Compliant |
| Product Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
