TEMPEST Certifiable Secure KVM Extender - NIAP Compliant, DP/HDMI, Fiber Style
FIFE11PH-MT
Save $1,195.77
Extend HDMI/DP and USB signals using fiber optic connections without risk of a a peripheral security breach. HighSecLabs' FIFE11PH-MT Secure TEMPEST Certifiable KVM Extender enables filtered, unidirectional, long-distance, and high-speed extension of computer video and keyboard/mouse signals, while preventing vulnerable peripherals from compromising network security.
The HSL Secure Extended Isolators remotely transfer not only video and audio, but also the keyboard and mouse. The remote PC can be securely operated from the monitor/projector side. The Keyboard/Mouse USBs are unidirectional, filtered and secure.

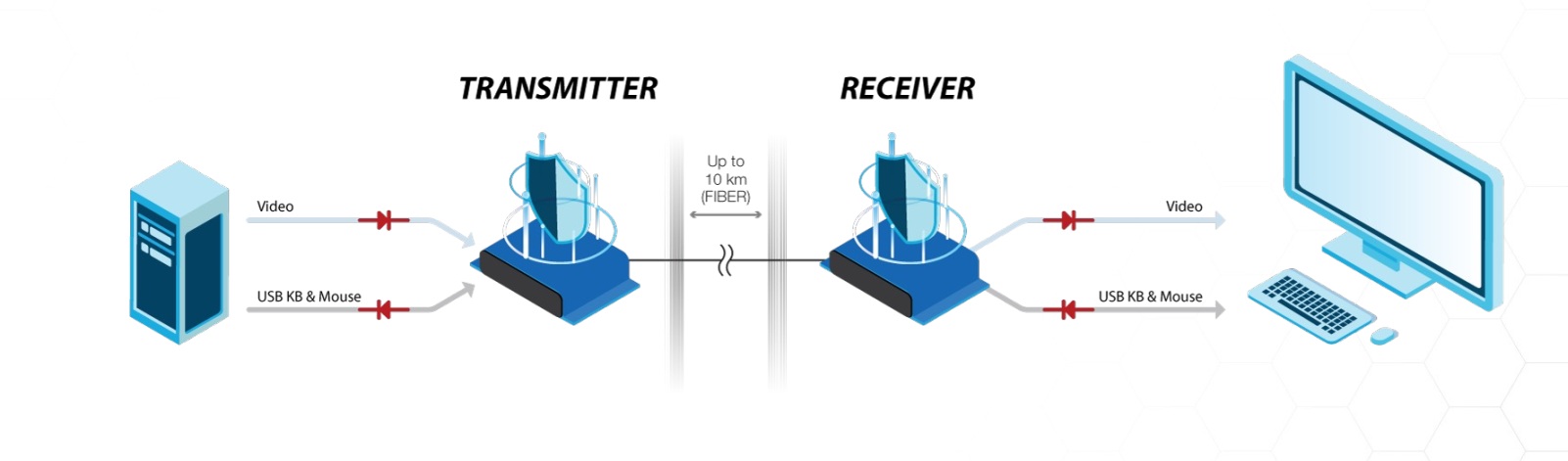

High Sec Labs FIFE11PH-MT Secure KVM Extender / KVM Isolator Application Diagram
High Sec Labs FIFE11PH-M Features
- Secure Architecture: HSL's Secure Extenders are designed using the same architecture as HSL's NIAP Protection Profile 4.0 for Peripheral Sharing Devices (PSD) certified products.Additionally, the FICE11PH-MT is TEMPEST Level B Compliant.
- Long Range: Transmit and receive signals over distances up to 10km depending on GBIC type.
- Zero Latency: High-performance HDBaseT technology provides zero-latency connections between transmitter and receiver units.
- Ultra-HD Video Quality: Extend video signals at UHD 4K resolutions up to 3840x2160 at 30Hz
- DP/HDMI Combo Connectors: HSL's unique combination connectors allow video signals to be sent over both DisplayPort and HDMI cables.
High Sec Labs FIFE11PH-M Security Features
Video Security
- Computer video input interfaces are isolated by using different electronic components, power, and ground domains.
- A dedicated, read-only, EDID emulation for each computer isolates the display.
- Access to the monitor's Extended Display Identification Data (EDID) is blocked.
- Access to the Monitor Control Command Set (MCCS commands) is blocked
Keyboard & Mouse Security
- The keyboard and mouse are isolated by a dedicated USB device emulation for each computer.
- Communication from computer to keyboard/mouse is blocked, enforcing unidirectional data flow from peripherals to the computer.
- Non-HID (Human Interface Device) data transactions are blocked.
- Special holographic tampering evident labels on the product's enclosure provide a clear visual indication if the product has been opened or compromised.
The FICE11PH-MT is TEMPEST certifiable
- TEMPEST Level B Compliant
- Compliant with NIAP Common Criteria PP4.0 PSD Protection Profile
FIFE11PH-MT Resources
Secure KVM Extender Datasheet (PDF)
Quick Start Guide (PDF)
High Sec Labs FIFE11PH-MT Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28mm 5.8 x 4.2 x 1.1in (Transmitter/Receiver) |
| Weight | 0.64kg / 1.4lb (Transmitter/Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Extender Features | |
| No. of Sources | 1 |
| Extension Type | Fiber Optic |
| Link Port | SPF |
| Extension Length | Up to 10km - Depends on the GBIC type |
| Transmitter Units | |
| Transmitter Model | FIFE11PHT-MT |
| Video Port | DP/HDMI |
| Max Resolution | UHD 4K up to 3840 x 2160 30Hz |
| Mouse and Keyboard | USB Type B |
| Receiver Units | |
| Receiver Model | FIFE11PHR-MT |
| Video Port | DP/HDMI |
| Max Resolution | UHD 4K up to 3840 x 2160 30Hz |
| Power Requirements | |
| Power Over Ethernet | No |
| Power | 12V DC |
| AC Input | 100 to 240V AC |
| Power Type | External |
| Certification | |
| Security Accreditation | NIAP PP4.0 Compliant TEMPEST Certifiable |
| Product Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
