4K KVM Extender with Local Console - 100 meters, Combo DP/HDMI UHD 4K 3840x2160 60Hz

FKCE11PH60-N

$2,251.00$1,706.67
Save $544.33
FREE Shipping on orders over $100

Extend keyboard, video, mouse, audio, and USB HID signals up to 325 feet over CAT6a with the high performance FKCE11PH60-N 4K KVM extender. HSL's copper KVM Extenders use paired Transmitters and Receivers to extend computer video, keyboard/mouse, audio, and IR remote signals without latency over distances up to 100 meters. This KVM Extender with local console video port is ideal for users connecting to centralized computer networks from physically distant workstations and peripherals.

With HSL's DP/HDMI combo connector, the system's transmitter unit (FKCE11PH60T-N) can connect to either HDMI or DisplayPort equipment and can handle format conversion to extend video signals to an HDMI or DisplayPort monitor connected to the receiver unit (FKCE11PH60R-N). With Power-over-Cable (PoC) support, the FKCE11PH60-N ensures hassle-free installation without the need for multiple power sources on both ends of the extender pair.

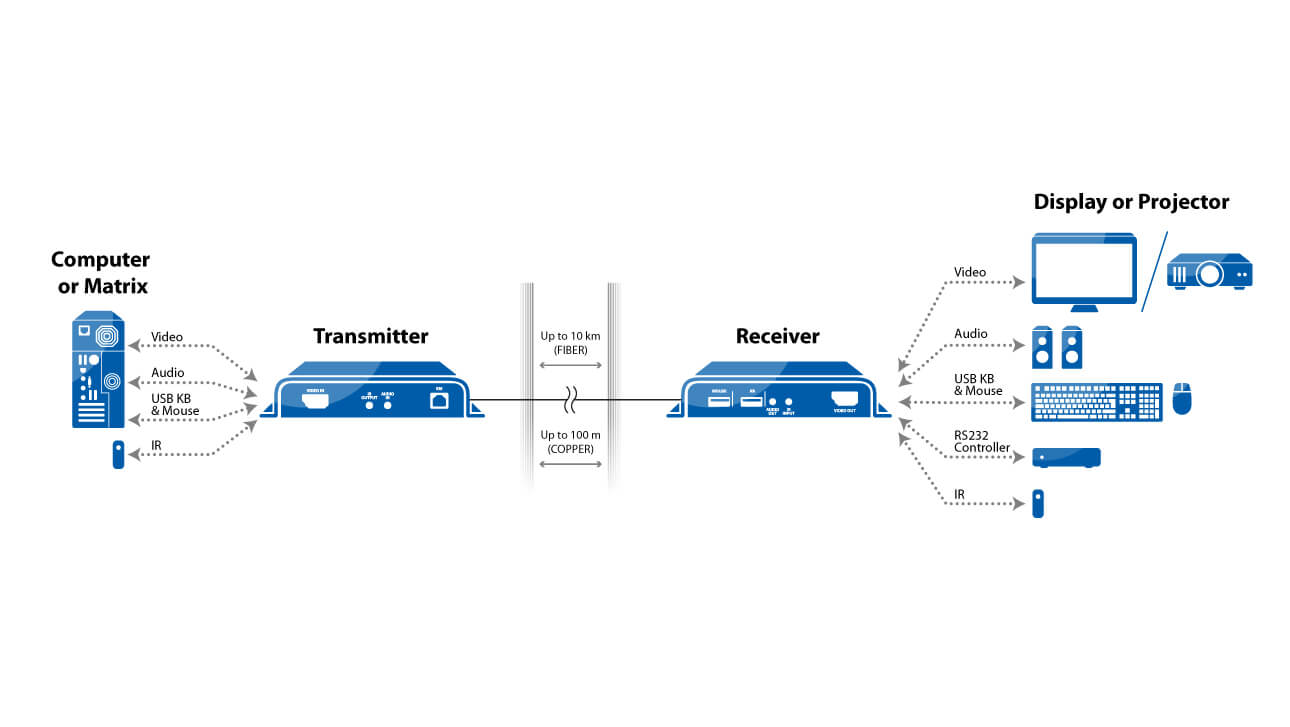

high performance FKCE11PH60-N 4K KVM extender application diagram

FKCE11PH60-N HDMI/DP KVM Extender Features and Benefits

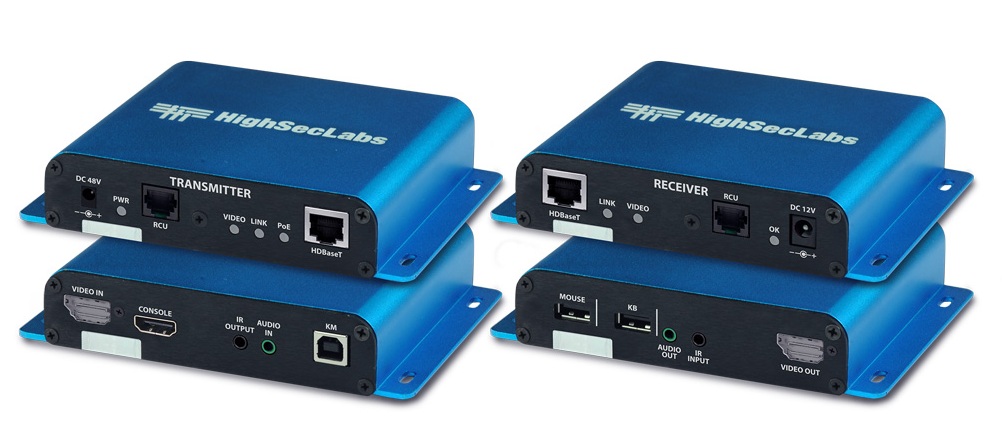

  • Solution consists of a local transmitter (FKCE11PH60T-N) and a remote receiver (FKCE11PH60R-N)
  • Long Distance Extension: Extend KVM signals through CAT6 cable over distances up to 100m.
  • Zero Latency: Send signals between the paired Transmitters and Receivers without latency.
  • Ultra-HD Video Quality: Transmit and receive video signals at UHD 4K resolutions up to 3840x2160 at 60Hz.

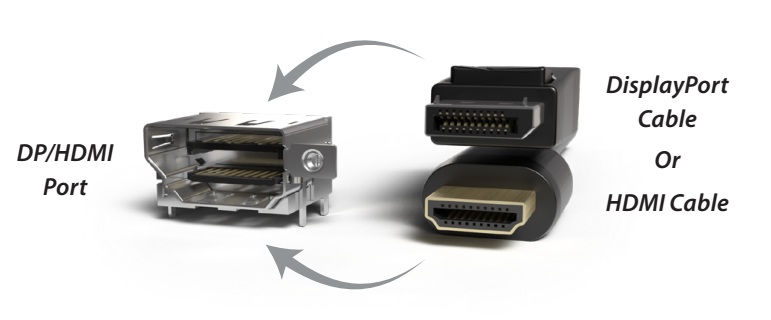

  • Combo Connector: Connect either DisplayPort or HDMI video cables to the extender pairs via the unique DP/HDMI combo connector video port.
  • Local Monitor Port: Includes a local HDMI port to add an HDMI monitor to transmitter side.
  • Audio Extension: Transmit and receive audio signals without any loss of sound quality.
  • Dedicated HID Ports: Extend keyboard and mouse signals with dedicated HID ports on both the Transmitter and Receiver.
  • Serial Control: Control a wide range of devices by transmitting and receiving RS232 Serial Commands.
  • IR Remote Control Extension: Extend IR remote control signals from one side of the Extender pair to the other.
  • Power over Copper/Cable: Send power from the Transmitter to the Receiver, removing the need for multiple power sources.
  • Made in USA: TAA and BAA compliance for highest supply chain security and quality

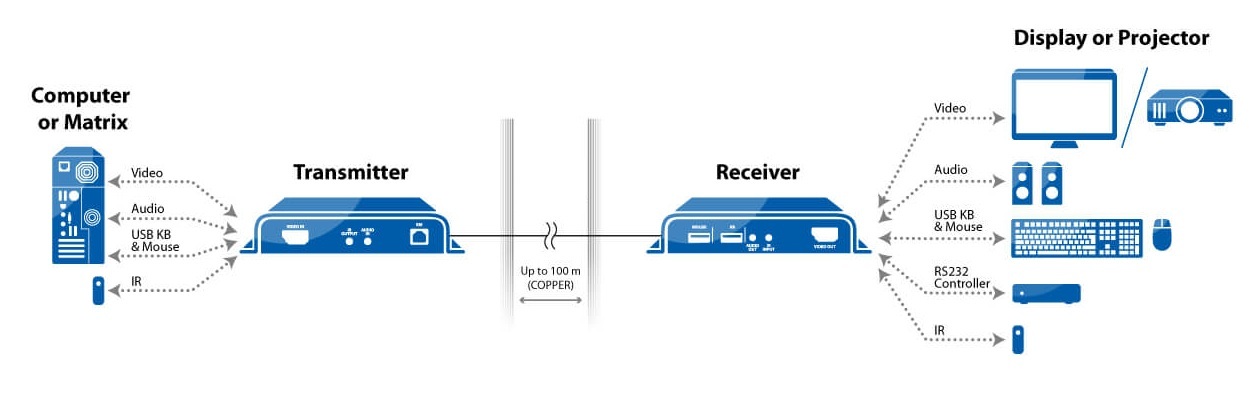

High Sec Labs FKCE11PH60-N High performance CATx KVM Extender

FKCE11PH60-N Package Contents

High Sec Labs FKCE11PH60-N Package Contents
  • (1) FKCE11PH60T-N Commercial grade 100m Copper Extended KVM Transmitter, 4K 60Hz (TX)
  • (1) FKCE11PH60R-N Commercial grade 100m Copper Extended KVM Receiver, 4K 60Hz (RX)
  • (1) Wall-Mounted Power Supply
  • (1) 2-year standard warranty

High Sec Labs FKCE11PH60-N Specifications

Mechanical
Dimensions145 (W) x 105 (D) x 28 (H) mm
5.8 (W) x 4.2 (D) x 1.1 (H) inch
(Transmitter and Receiver)
Weight0.64 kg (1.4 lbs)
(Transmitter / Receiver)
Environmental
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Operating Humidity0% to 80% non-condensing;
Extender Features
Extension typeCopper
Link PortRJ45
CAT 6A Link distance100m (328 ft.) **
PoCYes - powered at transmitter
Transmitter UNIT (TX)
Video Ports1 x DP/HDMI for source
1 x HDMI for local console
Max Output ResolutionUHD 4k up to 3840x2160 60Hz Up to100m**
Mouse and Keyboard1 x USB 2.0 Type B
Audio3.5mm jack
IR Remote PortMini PL (OUT)
RS-232RJ14 (IN)
Receiver Unit (RX)
Display/Projector port1 x DP/HDM
Max Output ResolutionUHD 4k up to 3840x2160 60Hz Up to100m**
Mouse and Keyboard2 x USB 2.0 Type A
Audio Jack3.5mm jack
IR Remote PortMini PL (IN)
RS-232/RCURJ14 (OUT)
Power (TX/RX)
Power RequirementsTransmitter: 48V DC Receiver: 12V DC optional
AC Input100 to 240V AC
POCSupported in Transmitter
Software
Supported OSWindows, Linux, Mac
Certification
Product CertificationCE, RCM, FCC class B, VCCI, TUV US, TUV Canada
General Info
Made InTAA, BAA compliant
Product life-cycle10 years
Warranty2 Years

** Extension distance and video resolution is dependent on the type and quality of the CATx cable in use. CAT6A or better recommended

The FKCE11PH60-N DP/HDMI to DP/HDMI high performance Copper KVM Extender up to 100 meters 4K 60hz is also known as the CPN27837.
