4K DP/HDMI KVM Extender over Copper - 100 meters, UHD 4K 3840x2160 30Hz
FKCE11PHEC-N
Save $205.00

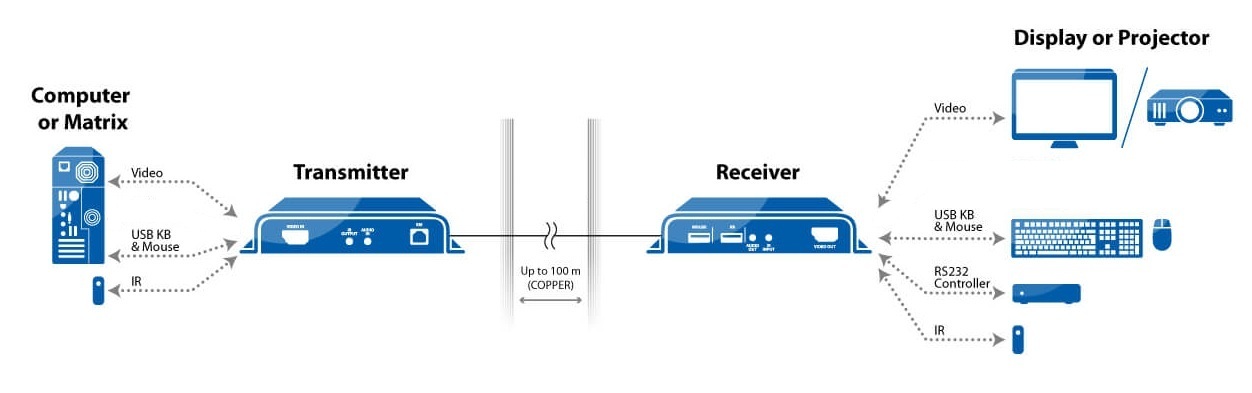

Extend keyboard, video, mouse, and USB HID signals over copper cable with the economical FKCE11PHEC-N. HSL's copper KVM Extenders use paired Transmitters and Receivers to extend computer video, keyboard/mouse, and IR remote signals without latency over distances up to 100 meters. This is ideal for users connecting to centralized computer networks from physically distant workstations and peripherals.
With HSL's DP/HDMI combo connector, the system's transmitter unit (FKCE11PHECT-N) can connect to either HDMI or DisplayPort equipment and can handle format conversion to extend video signals to an HDMI monitor connected to the receiver unit (FKCE11PHECR-N). With Power-over-Cable (PoC) support, the FKCE11PHEC-N ensures hassle-free installation without the need for multiple power sources on both ends of the extender pair.
FKCE11PHEC-N HDMI/DP KVM Extender Features and Benefits

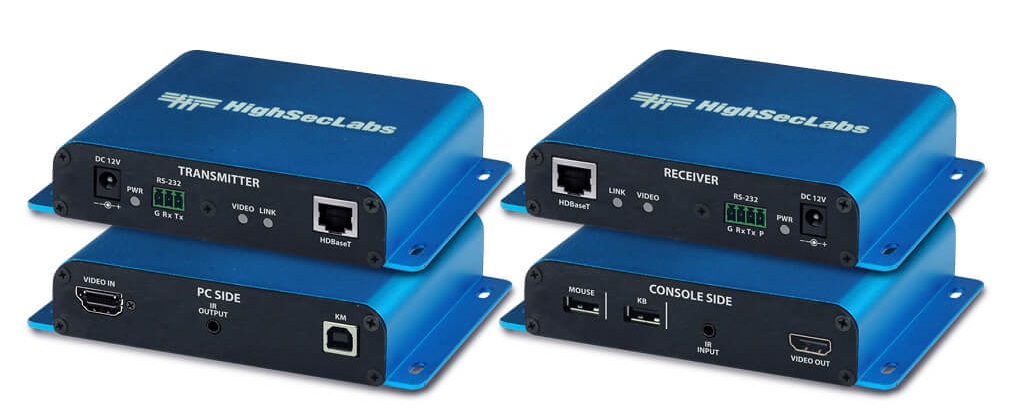

- Solution consists of a local transmitter (FKCE11PHECT-N) and a remote receiver (FKCE11PHECR-N)
- Long Distance Extension: Extend KVM signals through CAT6 cable over distances up to 100m.
- Zero Latency: Send signals between the paired Transmitters and Receivers without latency.
- Ultra-HD Video Quality: Transmit and receive video signals at UHD 4K resolutions up to 3840x2160 at 30Hz.

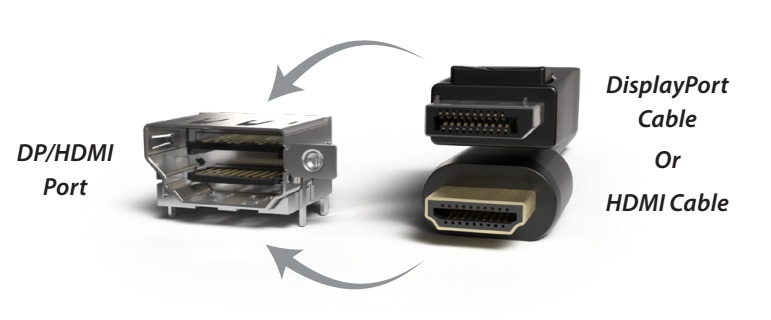

- Combo Connector: Connect both DisplayPort and HDMI video cables to the transmitter via the unique combo connector video port. (Note: The receiver side supports HDMI video only - with auto-format conversion as required.)
- Dedicated HID Ports: Extend keyboard and mouse signals with dedicated HID ports on both the Transmitter and Receiver.
- Serial Control: Control a wide range of devices by transmitting and receiving RS232 Serial Commands.
- IR Remote Control Extension: Extend IR remote control signals from one side of the Extender pair to the other.
- Power over Copper/Cable: Send power from the Transmitter to the Receiver, removing the need for multiple power sources.
- Made in USA: TAA and BAA compliance for highest supply chain security and quality
FKCE11PHEC-N Package Contents
- (1) FKCE11PHECT-N Commercial grade 100m Copper Extended KVM Transmitter, 4K 30Hz (TX)
- (1) FKCE11PHECR-N Commercial grade 100m Copper Extended KVM Receiver, 4K 30Hz (RX)
- (1) Wall-Mounted 12V Power Supply
- (1) 2-year standard warranty
FKCE11PHEC-N Resources
High Sec Labs Copper Extender Data Sheet (PDF)
High Sec Labs Extender Solutions Brochure (PDF)
High Sec Labs FKCE11PHEC-N Specifications
| Mechanical | |
| Dimensions | 145 (W) x 105 (D) x 28 (H) mm 5.8 (W) x 4.2 (D) x 1.1 (H) inch (Transmitter and Receiver) |
| Weight | 0.64 kg (1.4 lbs) (Transmitter / Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 80% non-condensing; |
| Extender Features | |
| Extension type | Copper |
| Link Port | RJ45 |
| CAT 6A Link distance | 100m (328 ft.) ** |
| PoC | Yes - powered at transmitter |
| Transmitter UNIT (TX) | |
| Video Port | 1xDP/HDMI, UHD 4k up to 3840x2160 30Hz |
| Mouse and Keyboard | 1 x USB 2.0 Type B |
| Audio | N/A |
| IR Remote Port | Mini PL (OUT) |
| RS-232 | 3-Pin Serial Block |
| Receiver Unit (RX) | |
| Display/Projector port | 1 x HDMI |
| Max Output Resolution | UHD 4k up to 3840x2160 30Hz Up to100m** |
| Mouse and Keyboard | 2 x USB 2.0 Type A |
| Audio Jack | N/A |
| IR Remote Port | Mini PL (IN) |
| RS-232/RCU | 4-Pin Terminal Block |
| Power (TX/RX) | |
| Power Requirements | Transmitter: 12V DC Receiver: 12V DC optional |
| AC Input | 100 to 240V AC |
| POC | Supported in Transmitter |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Product Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
** Extension distance and video resolution is dependent on the type and quality of the CATx cable in use. CAT6A or better recommended
The FKCE11PHEC-N DP/HDMI to HDMI Economy Copper KVM Extender up to 100 meters 4K 30hz is also known as the CPN31351.
