4K Fiber KVM Extender - up to 10km, Combo DP/HDMI UHD 4K 3840x2160 30Hz
FKFE11PH-N
Save $931.23
Extend keyboard, video, mouse, audio, and USB HID signals up to six miles over Single-mode Fiber Optic cable with the high performance FKFE11PH-N 4K KVM fiber extender. HSL's fiber KVM Extenders use paired Transmitters and Receivers to extend computer video, keyboard/mouse, audio, and IR remote signals without latency over distances up to 10km. This KVM Extender is ideal for users connecting to centralized computer networks from physically distant workstations.
With HSL's DP/HDMI combo connector, the system's transmitter unit (FKFE11PHT-N) can connect to either HDMI or DisplayPort equipment and can handle format conversion to extend video signals to an HDMI or DisplayPort monitor connected to the receiver unit (FKFE11PHR-N).
FKFE11PH-N HDMI/DP Fiber KVM Extender Features and Benefits

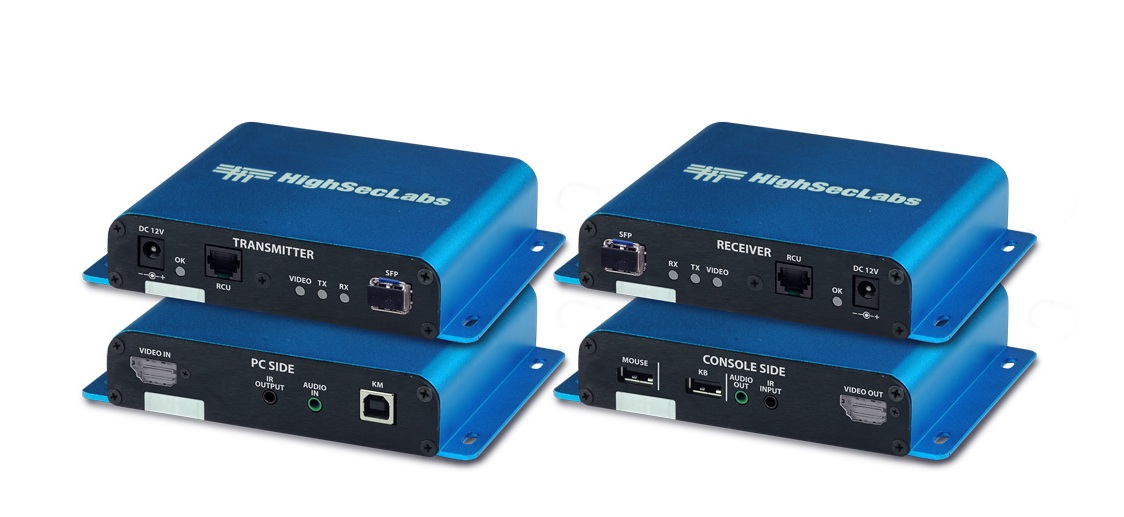

- Solution consists of a local transmitter (FKFE11PHT-N) and a remote receiver (FKFE11PHR-N)
- Long Distance Extension: Extend KVM signals through through fiber over distances up to 10km.
- Zero Latency: Send signals between the paired Transmitters and Receivers without latency or lag.
- Ultra-HD Video Quality: Transmit and receive video signals at UHD 4K resolutions up to 3840x2160 at 30Hz.

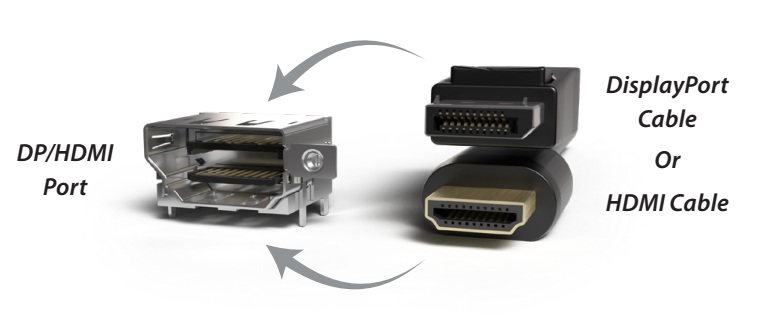

- Combo Connector: Connect either DisplayPort or HDMI video cables to the extender pairs via the unique DP/HDMI combo connector video port.
- Audio Extension: Transmit and receive audio signals without any loss of sound quality.
- Dedicated HID Ports: Extend keyboard and mouse signals with dedicated HID ports on both the Transmitter and Receiver.
- Serial Control: Control a wide range of devices by transmitting and receiving RS232 Serial Commands.
- IR Remote Control Extension: Extend IR remote control signals from one side of the Extender pair to the other.
- Made in USA: TAA and BAA compliance for highest supply chain security and quality
FKFE11PH-N Package Contents
- (1) FKFE11PHT-N Commercial grade 10km Fiber Extended KVM Transmitter, 4K 30Hz (TX)
- (1) FFKFE11PHR-N Commercial grade 10km Fiber Extended KVM Receiver, 4K 30Hz (RX)
- (2) Wall-Mounted Power Supply
- (1) USB HID Filter
- (1) 2-year standard warranty
FKFE11PH-N Resources
High Sec Labs Fiber Extender Data Sheet (PDF)
High Sec Labs Extender Solutions Brochure (PDF)
High Sec Labs FKFE11PH-N Specifications
| Mechanical | |
| Dimensions | 145 (W) x 105 (D) x 28 (H) mm 5.8 (W) x 4.2 (D) x 1.1 (H) inch (Transmitter and Receiver) |
| Weight | 0.64 kg (1.4 lbs) (Transmitter / Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 80% non-condensing; |
| Extender Features | |
| Extension type | LC Single-Mode Fiber |
| Link Port | 1 x Link Ports SFP+ Data speed: 10 Gbps, Wave length: 1300nm, Fiber optical connector: LC Single mode Fiber |
| Extension Length | 10km (6.2 miles) |
| PoC | N/A |
| Transmitter UNIT (TX) | |
| Video Ports | 1 x DP/HDMI |
| Max Output Resolution | UHD 4k up to 3840x2160 30Hz |
| Mouse and Keyboard | 1 x USB 2.0 Type B |
| USB Peripheral Port | N/A |
| Audio | 3.5mm jack |
| IR Remote Port | Mini PL (OUT) |
| RS-232 | RJ14 (IN) |
| Receiver Unit (RX) | |
| Display/Projector port | 1 x DP/HDM |
| Max Output Resolution | UHD 4k up to 3840x2160 30Hz |
| Mouse and Keyboard | 2 x USB 2.0 Type A |
| USB Peripheral Port | N/A |
| Audio Jack | 3.5mm jack |
| IR Remote Port | Mini PL (IN) |
| RS-232/RCU | RJ14 (OUT) |
| Power (TX/RX) | |
| Power Requirements | 12V DC |
| AC Input | 100 to 240V AC |
| POC | N/A |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Product Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FKFE11PH-N DP/HDMI to DP/HDMI high performance Fiber KVM Extender up to 10km 4K 30hz is also known as the CPN20498.
