4K@60Hz Fiber KVM Extender - up to 10km, Combo DP/HDMI UHD 4K 3840x2160 60Hz
FKFE11PHU60-N
Save $963.23
Extend keyboard, video, mouse, audio, USB peripherals, and USB HID signals up to six miles over Single-mode Fiber Optic cable with the high performance FKFE11PHU60-N 4K KVM fiber extender. HSL's fiber KVM Extenders use paired Transmitters and Receivers to extend computer video, keyboard/mouse, USB peripherals, audio, and IR remote signals without latency over distances up to 10km. This KVM Extender is ideal for users connecting to centralized computer networks from physically distant workstations.
With HSL's DP/HDMI combo connector, the system's transmitter unit (FKFE11PHU60T-N) can connect to either HDMI or DisplayPort equipment and can handle format conversion to extend video signals to an HDMI or DisplayPort monitor connected to the receiver unit (FKFE11PHU60R-N).
FKFE11PHU60-N HDMI/DP Fiber KVM Extender Features and Benefits

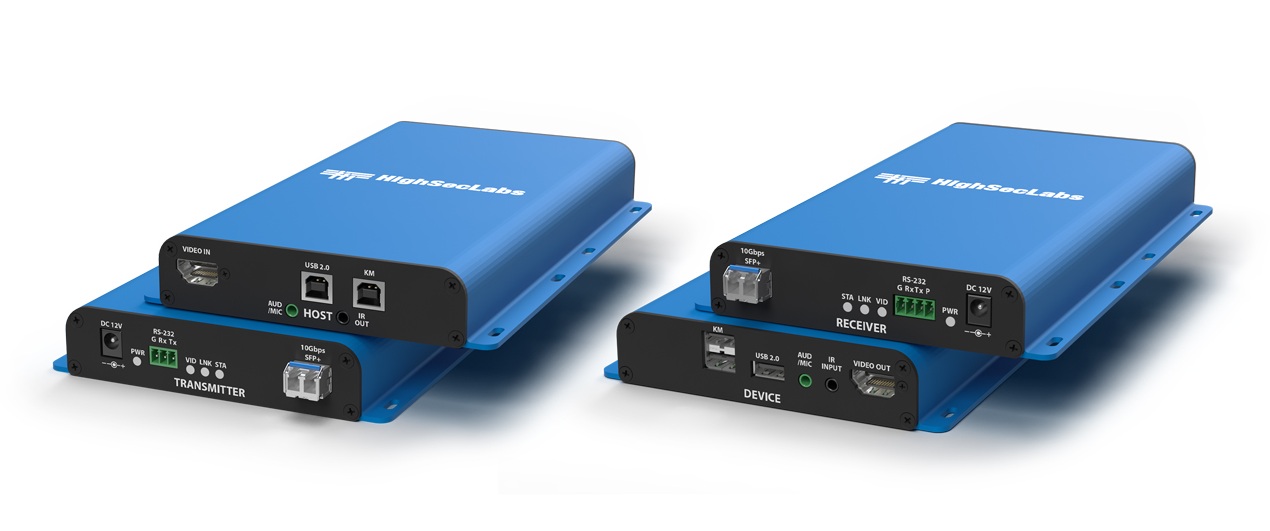

- Solution consists of a local transmitter (FKFE11PHU60T-N) and a remote receiver (FKFE11PHU60R-N)
- Long Distance Extension: Extend KVM signals through through fiber over distances up to 10km.
- Zero Latency: Send signals between the paired Transmitters and Receivers without latency or lag.
- Ultra-HD Video Quality: Transmit and receive video signals at UHD 4K resolutions up to 3840x2160 at 60Hz.

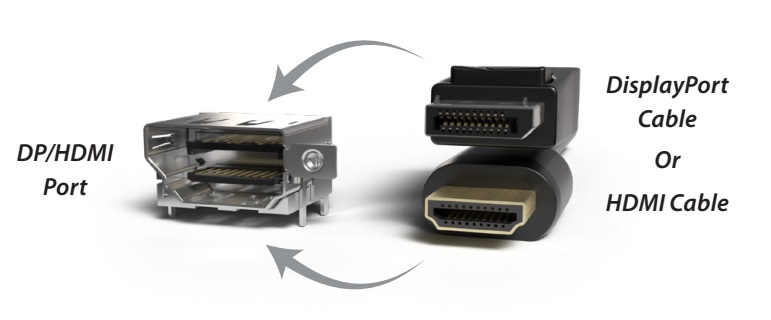

- Combo Connector: Connect either DisplayPort or HDMI video cables to the extender pairs via the unique DP/HDMI combo connector video port.
- Audio Extension: Transmit and receive audio signals without any loss of sound quality.
- Dedicated HID Ports: Extend keyboard and mouse signals with dedicated HID ports on both the Transmitter and Receiver.
- Full USB 2.0 Extension: Extend and power any USB 2.0 device, such as a webcam, at 480Mbps.
- Serial Control: Control a wide range of devices by transmitting and receiving RS232 Serial Commands.
- IR Remote Control Extension: Extend IR remote control signals from one side of the Extender pair to the other.
- Made in USA: TAA and BAA compliance for highest supply chain security and quality
FKFE11PHU60-N Package Contents
- (1) FKFE11PHU60T-N Commercial grade 10km Fiber Extended KVM Transmitter, 4K 60Hz (TX)
- (1) FKFE11PHU60R-N Commercial grade 10km Fiber Extended KVM Receiver, 4K 60Hz (RX)
- (2) Wall-Mounted Power Supply
- (1) USB HID Filter
- (1) 2-year standard warranty
FKFE11PHU60-N Resources
High Sec Labs Fiber Extender Data Sheet (PDF)
High Sec Labs Extender Solutions Brochure (PDF)
High Sec Labs FKFE11PHU60-N Specifications
| Mechanical | |
| Dimensions | 140 (W) x 240 (D) x 28 (H) mm 5.5 (W) x 8.3 (D) x 1.1 (H) inch (Transmitter and Receiver) |
| Weight | 1.1 kg (2.4 lbs) (Transmitter / Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 80% non-condensing; |
| Extender Features | |
| Extension type | LC Single-Mode Fiber |
| Link Port | 1 x Link Ports SFP+ Data speed: 10 Gbps, Wave length: 1300nm, Fiber optical connector: LC Single mode Fiber |
| Extension Length | 10km (6.2 miles) |
| PoC | N/A |
| Transmitter UNIT (TX) | |
| Video Ports | 1 x DP/HDMI |
| Max Output Resolution | UHD 4k up to 3840x2160 60Hz |
| Mouse and Keyboard | 1 x USB 2.0 Type B |
| USB Peripheral Port | 1 USB 2.0 Type A |
| Audio | 3.5mm jack |
| IR Remote Port | Mini PL (OUT) |
| RS-232 | 3-Pin Terminal Block |
| Receiver Unit (RX) | |
| Display/Projector port | 1 x DP/HDM |
| Max Output Resolution | UHD 4k up to 3840x2160 60Hz |
| Mouse and Keyboard | 2 x USB 2.0 Type A |
| USB Peripheral Port | 1 USB 2.0 Type A |
| Audio Jack | 3.5mm jack |
| IR Remote Port | Mini PL (IN) |
| RS-232/RCU | 4-Pin Terminal Block |
| Power (TX/RX) | |
| Power Requirements | 12V DC |
| AC Input | 100 to 240V AC |
| POC | N/A |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Product Certification | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FKFE11PHU60-N DP/HDMI to DP/HDMI high performance Fiber KVM Extender up to 10km 4K 60hz is also known as the CPN29810.
