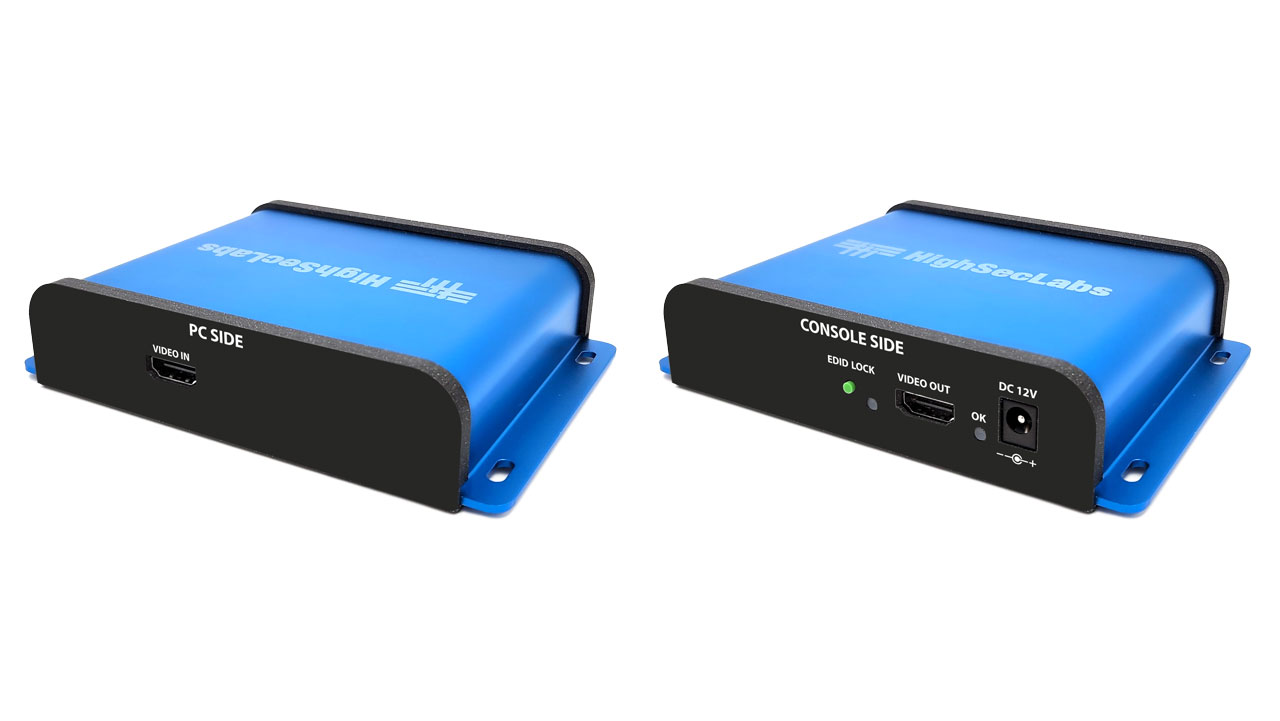

Secure 1-Port Galvanic HDMI Video Isolator 3840x2160 @ 30 Hz, PP4.0 Compliant
FV11H-MG
Save $327.33
The FV11H-MG Galvanic HDMI Video Isolator is designed for Defense applications to prevent vulnerable peripherals from mediating between compromised and secure computers. The FV11H-MG Galvanic HDMI Video Isolator adds another layer of security through complete galvanic isolation of DC and ground currents between two pieces of equipment.
The FV11H-MG is not only 4KV galvanically isolated but also logically separated and is compliant with the latest NIAP PP 4.0 PSD standard. HSL's secure Isolators are the perfect solution for Defense, Government and Military customers.
Both the signal and ground paths between equipment are isolated, there is no distortion of the signal. High Sec Labs unique mounting options and available PSU make the galvanic isolator family easy to use and the ideal solution for many desktop and rack mount applications. The secure HDMI video isolator prevents vulnerable peripherals from mediating between compromised and secure computers by ensuring that video data flows in a single direction. By preventing host-toperipheral direct access the secure isolator eliminates data leakage.
Security Features of the High Sec Labs FV11H-MG Galvanic Isolators
- Data can flow from devices to host only. No reverse data flow possible by design.
- All firmware is in ROM (Read Only Memory).
- Display Plug & Play (EDID) protection Leakage prevention through patented emulated technology. Signaling attacks prevented by design.
FV11H-MG Resources
Secure Galvanic Isolator Datasheet (PDF)
Secure Isolator Brochure (PDF)
High Sec Labs FV11H-MG Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28mm 5.8 x 4.2 x 1.1in |
| Weight | 0.3kg / .64lb |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Console Ports | |
| Displays | 1 x HDMI |
| Max Resolution | 3840x2160 @ 30 Hz |
| Mouse and Keyboard | N/A |
| Computer Ports | |
| Display Type | 1 x HDMI 1.4 |
| Mouse and Keyboard | N/A |
| Power | |
| Power Requirements | DC input 12V/2.5A Maximum |
| Power Type | External Power Supply |
| Galvanic Isolation | 3KV |
| General Info | |
| Supported OS | Windows, Linux, Mac |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FV11H-MG Secure HDMI 1-Port Galvanic Isolator is also known as the CPN27643.
