Secure Medical HDMI Video Galvanic Isolator - 3840x2160 @ 30 Hz, includes Medical Grade Power Supply, PP4.0 Compliant
FV11H-MGH
Save $364.33

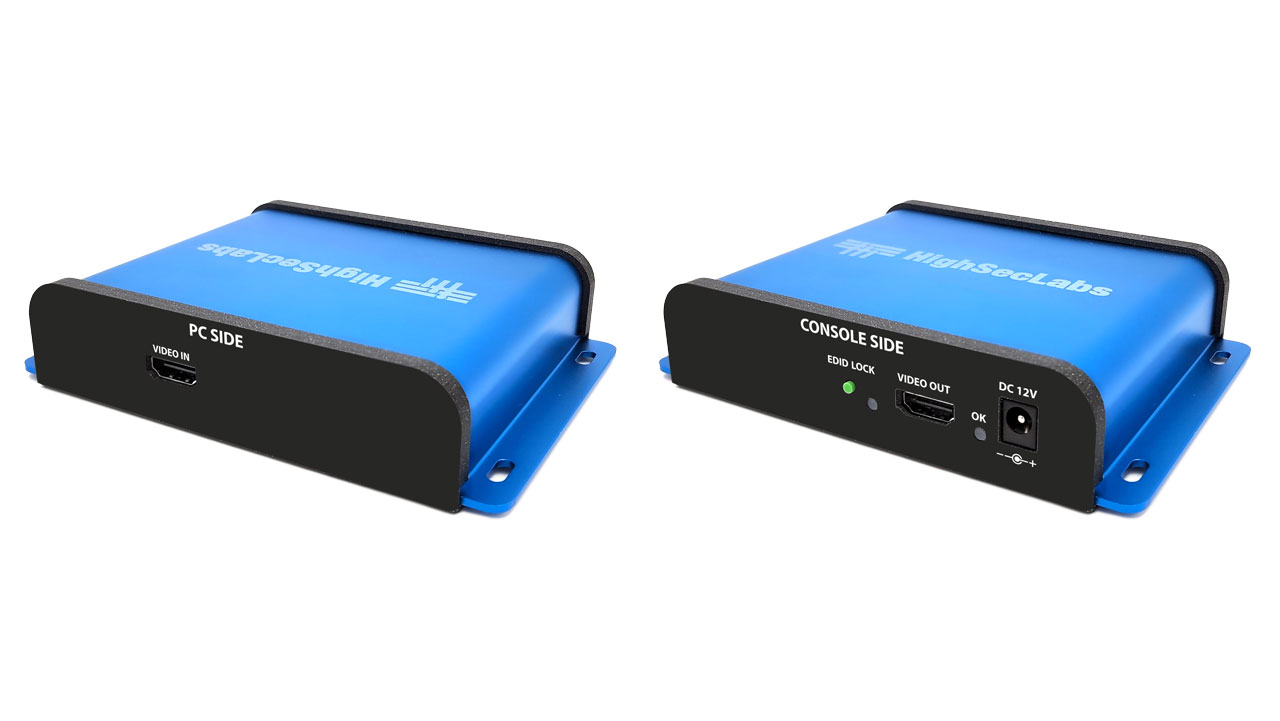

The FV11H-MGH Galvanic HDMI Video Isolator is designed for both Medical and Defense applications to prevent vulnerable peripherals from mediating between compromised and secure computers. The FV11H-MGH Galvanic HDMI Video Isolator adds another layer of security through complete galvanic isolation of DC and ground currents between two pieces of equipment.
Galvanic isolation and the use of a medical grade PSU ensures compliance with different medical standards, allowing its use in a wide set of medical applications.
The FV11H-MGH is not only 4KV galvanically isolated but also logically separated and is compliant with the latest NIAP PP 4.0 PSD standard. HS's secure Isolators are the perfect solution for Medical but also Defense, Government and Military customers.
Both the signal and ground paths between equipment are isolated, there is no distortion of the signal. High Sec Labs unique mounting options and available PSU make the galvanic isolator family easy to use and the ideal solution for many desktop and rack mount applications. The secure isolator prevents vulnerable peripherals from mediating between compromised and secure computers by ensuring that video data flows in a single direction. By preventing host-toperipheral direct access the secure isolator eliminates data leakage.
Security Features of the High Sec Labs FV11H-MGH Galvanic Isolators
- Data can flow from devices to host only. No reverse data flow possible by design.
- All firmware is in ROM (Read Only Memory).
- Display Plug & Play (EDID) protection Leakage prevention through patented emulated technology. Signaling attacks prevented by design.
- Medical Grade External Power Supply
- Medical Grade Certifications: IEC60601-1, IEC 60601-1-2
FV11H-MGH Resources
Secure Galvanic Isolator Datasheet (PDF)
Secure Isolator Brochure (PDF)
High Sec Labs FV11H-MGH Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28mm 5.8 x 4.2 x 1.1in |
| Weight | 0.3kg / .64lb |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Console Ports | |
| Displays | 1 x HDMI |
| Max Resolution | 3840x2160 @ 30 Hz |
| Mouse and Keyboard | N/A |
| Computer Ports | |
| Display Type | 1 x HDMI 1.4 |
| Mouse and Keyboard | N/A |
| Power | |
| Power Requirements | DC input 12V/2.5A Maximum |
| Power Type | Medical Grade External Power Supply |
| Galvanic Isolation | 3KV |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Sfety Certification | IEC60601-1, IEC62304, IEC60601-1-6 |
| EMC Certification | IEC 60601-1-2 |
| General Info | |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FV11H-MGH Secure Medical 1-port HDMI Video Galvanic Isolator with Medical Grade Power Supply is also known as the CPN27644.
