IOGEAR GCS1204G 4 Port Dual-Link DVI KVMP Pro


FREE Shipping on orders over $100

The IOGEAR GCS1204G 4-port Dual-Link DVI KVMP Pro switch can control up to 4 computers and share multiple USB peripherals from a single keyboard, monitor, and mouse console. The KVMP Switch also supports high-end 3D graphics. It is compatible with most gaming keyboards and offers an integrated 2-port USB 2.0 hub for peripheral sharing. The unit features IOGEAR's DynaSync intelligent technology which allows the KVMP to read and remember the monitor's optimal display parameters and refresh rate, a function critical in today's graphic intense applications where large wide screen displays (up to 30") are required. This powerful KVMP can increase efficiency and save equipment cost for applications where high resolution, large or widescreen monitors are required. Additionally, the patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected to the hub or via an external powered USB 2.0 hub. Access to such peripherals is performed on a one-at-a-time basis. Moreover, the audio ports allow for connecting powered PC speakers for stereo sound and a single microphone for audio input / output to each computer. Switching between computers is as easy as the push button port located on the unit's front panel or a "Hotkey" combination entered from the keyboard. *IOGEAR's DynaSync provides the EDID support for Windows 7 OS.

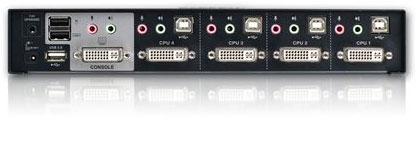

GCS1204G back connections
Rear Connections for the GCS1204G

IOGEAR GCS1204G Features and Benefits:

  • CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
  • Desktop Publishing / Graphic Design / Video Editing
  • Medical / Surgical / Diagnostic Displays
  • Share quality display between 4 USB / DVI computers
  • DynaSync - Reads and remembers the monitor's parameters when switching and booting
  • Maximum video resolutions:
    • DVI-D Dual link: 2560 x 1600
    • DVI-D Single link: 1920 x 1200
  • Audio support for 2.0 or 2.1 Audio
  • 2-port USB 2.0 peripheral hub to share printers or external hard drives
  • Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Mouse emulation may be disabled to allow programmable buttons to function
  • Support Mac keyboard and special keys
  • High-End Gaming with high video resolution
  • Compatible with gaming keyboards
  • Supports high-end 3D graphics
  • LED indicators for selected, online, auto scan, and peripheral connection
  • All cables are included
  • 3 Year Warranty

Package Contents:

  • 1 x 4 Port Dual-Link DVI KVMP Pro
  • 4 x Custom KVM Cables
  • 1 x USB-to-PS/2 Converter
  • 1 x Power Adapter
  • 1 x User Manual
  • 1 x Registration Card

GCS1204G Specifications:

Height 1.6 in. (4.1 cm.)
Width 10.2 in. (26 cm.)
Depth2.9 in. (7.4 cm.)
Weight7.5 lbs.
Video InputDual Link DVI
Video OutputDual Link DVI
MonitorDual Link DVI
Operating Voltage5 Vdc
Amps2 A
Port SelectionHot Key
Approved Agency RoHS Compliant & WEEE Compliance

This product is the replacement for the GCS1204.

UPC / EAN Barcode icon
UPC 881317508546
EAN 0881317508546
